Non-Standard Inch/Resolution COG LCD Displays
Technical Specifications
—
Product Overview
FangService sources display and LCM modules across the six mainstream families — COG and COB character/graphic LCD, PMOLED and AMOLED, a-Si TFT colour panels from 0.69 to 10.1 inch, LED backlight modules, and fully customized glass and LCM builds. Every model below is a standard catalogue part; anything outside it can be produced to drawing.
Specifications are the typical measured values published for each model. Interface, logic voltage, viewing direction, FPC length, pinout, cover lens and backlight colour can all be adjusted to your design — tell us the target enclosure and we will match glass, IC and FPC to it.
Product Categories
LCD Displays
COG LCD displays with the driver IC bonded directly onto the glass — 1602, 122×32 through 240×128, plus non-standard sizes.
View models →COB Modules
COB modules with the driver IC on the PCB, wire-bonded and epoxy-encapsulated — the classic rugged character and graphic LCD build.
View models →OLED Displays
Self-emissive PMOLED and AMOLED micro-displays from 0.42 to 2.42 inch with wide viewing angle and very low power.
View models →TFT Displays
a-Si TFT active-matrix colour panels from 0.69 to 10.1 inch, MCU/RGB/SPI/LVDS/MIPI interfaces, optional touch.
View models →LED Backlight Modules

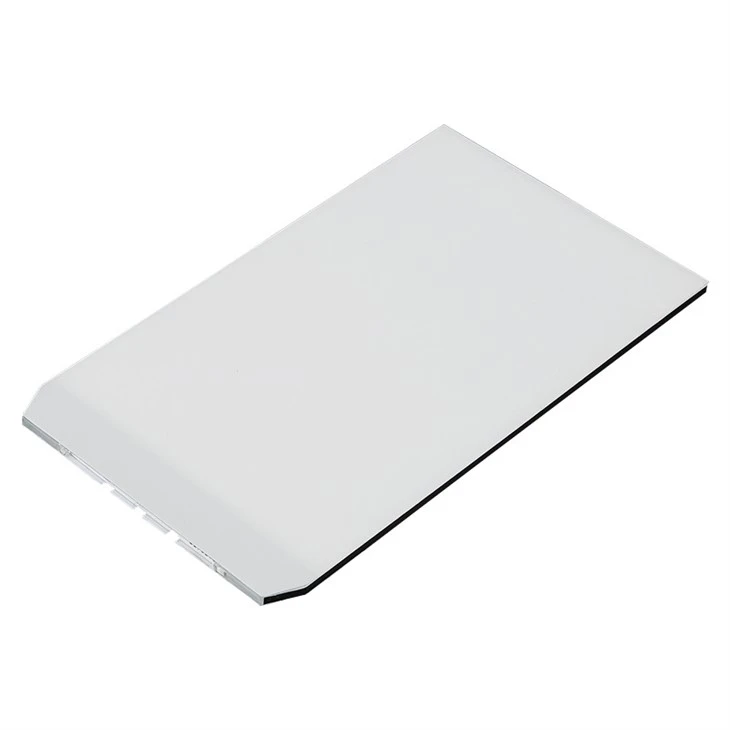

Edge, bottom, hollow and front-light LED backlight modules — including large-format hollow designs for 7″ to 32″.
View models →Custom Displays & Modules

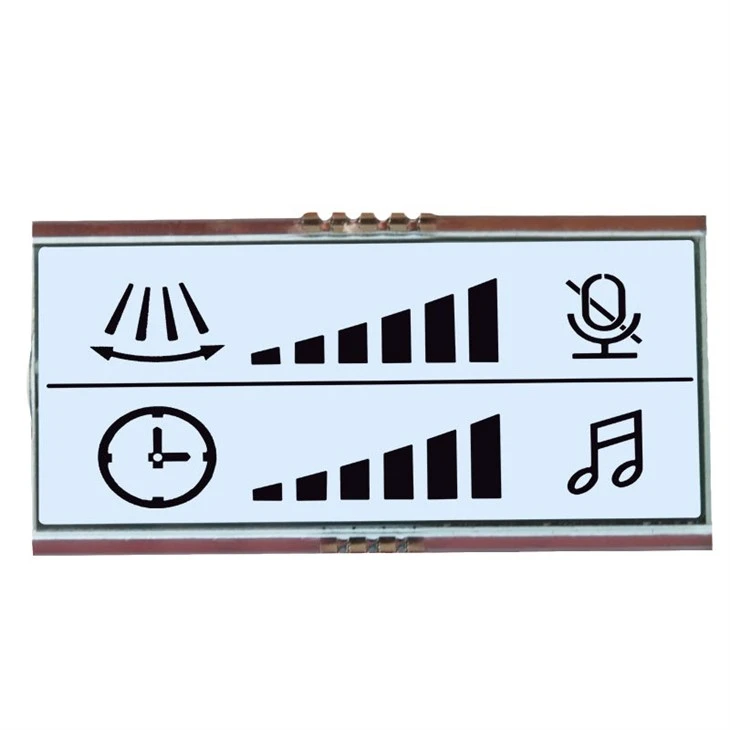

Custom glass mask, custom resolution, pen-segment, and fully bespoke LCM builds produced to your drawing.
View models →Product Catalogue
The full in-production range, grouped into 6 families. Specifications are typical values; dimensions, interfaces and coatings can be customized. Click a category to jump to its models.
LCD Displays (9)COB Modules (9)OLED Displays (14)TFT Displays (19)LED Backlight Modules (4)Custom Displays & Modules (6)
LCD Displays
9 modelsCOG (Chip-on-Glass) LCD displays bond the driver IC directly to the glass, giving a very thin module with a short interconnection path. This family covers the industry-standard 1602 character format and graphic formats from 122×32 up to 240×128, all available with optional backlight and in positive or negative display modes. Non-standard inch sizes and resolutions are produced to order.
1602 COG LCD Displays
Technical Specifications
—

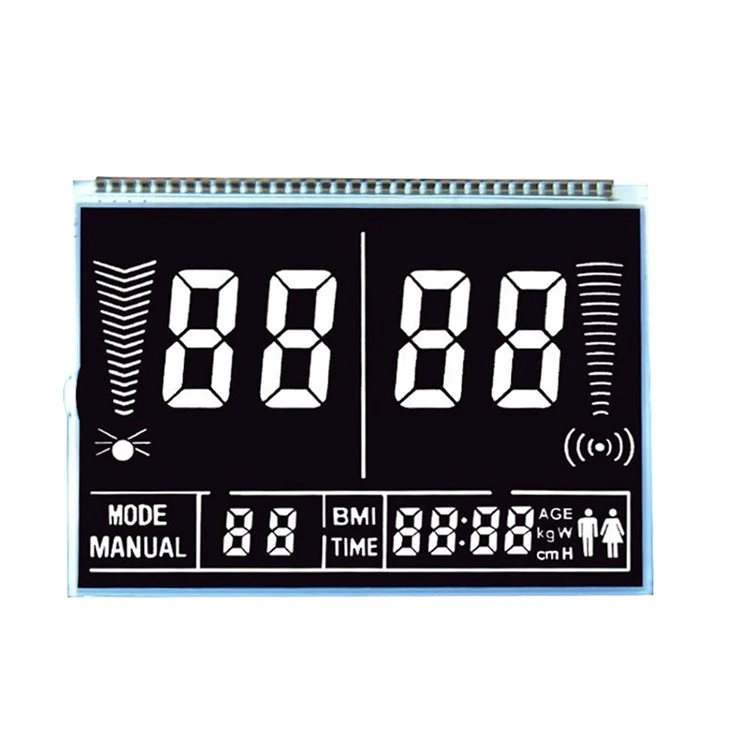

122×32 COG LCD Displays
Technical Specifications
—

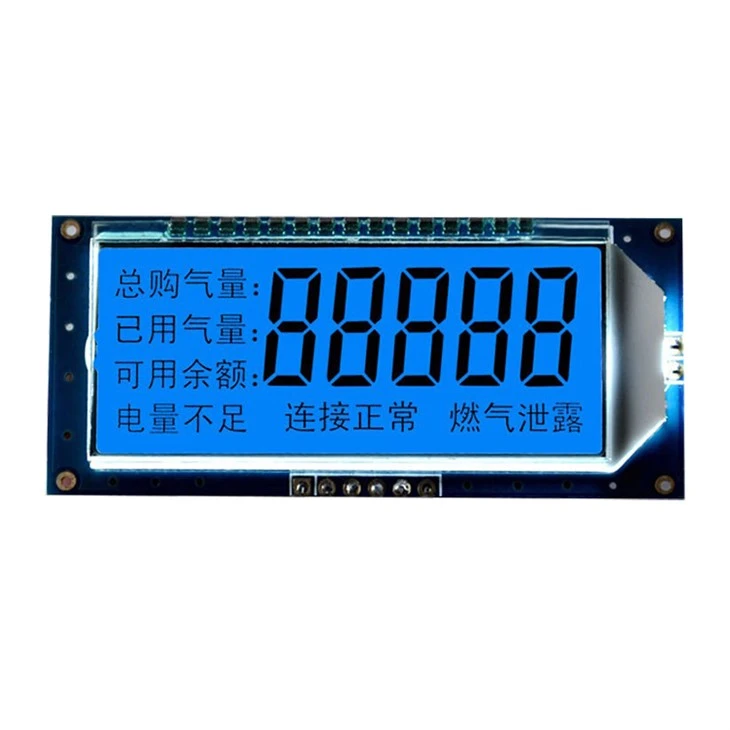

128×32 COG LCD Displays
Resolution 128 × 32 pixelsDisplay Format 128 dots × 32 dotsInterface 4-wire SPI, I²C, 8-bit parallel
Technical Specifications
| Display Format | 128 dots × 32 dots |
|---|---|
| Resolution | 128 × 32 pixels |
| Structure | COG |
| Interface | 4-wire SPI, I²C, 8-bit parallel |
| Logic Supply Voltage | 3.0V or 5.0V |
| Display Supply Voltage | 9.0V – 12.0V |
| Operating Current | 1.8mA – 4.0mA |
| Sleep Mode Current | <1µA |
| Duty Cycle | 1/32 |
| Module Dimension | 65.0 × 28.5 × 5.5 mm |
| View Area | 58.0 × 17.0 mm |
| Active Area | 52.0 × 13.0 mm |
| Dot Size | 0.38 × 0.36 mm |
| Dot Pitch | 0.41 × 0.39 mm |
| LCD Mode | STN Positive, Transflective |
| Polarizer | Transflective |
| Viewing Direction | 6:00 |
| Backlight | LED |
| Operating Temperature | -20℃ to +70℃ |
| Connection | FPC |
| FPC Length | 30mm |
| FPC Pin Pitch | 0.5mm / 0.8mm / 1.0mm |
| Certifications | RoHS, REACH, CE |

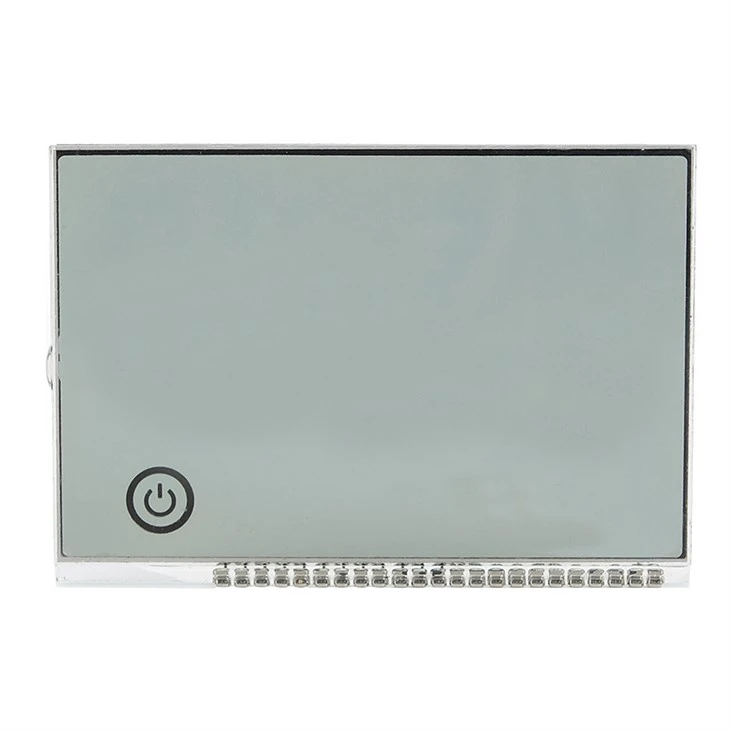

128×64 COG LCD Displays
Resolution 128 × 64 pixelsDisplay Format 128 dots × 64 dotsInterface 4-wire SPI, I²C, 8-bit parallel
Technical Specifications
| Display Format | 128 dots × 64 dots |
|---|---|
| Resolution | 128 × 64 pixels |
| Structure | COG |
| Controller IC | SSD1305 / SSD1309 / ST7565R / UC1698U |
| Interface | 4-wire SPI, I²C, 8-bit parallel |
| Logic Supply Voltage | 3.0V or 5.0V |
| Display Supply Voltage | 9.0V – 12.0V |
| Operating Current | 2.5mA – 6.0mA |
| Sleep Mode Current | <1µA |
| Duty Cycle | 1/64 |
| Module Dimension | 75.0 × 45.0 × 5.5 mm |
| View Area | 66.0 × 33.0 mm |
| Active Area | 60.0 × 30.0 mm |
| Dot Size | 0.40 × 0.40 mm |
| Dot Pitch | 0.44 × 0.44 mm |
| LCD Mode | STN Positive, Transflective |
| Polarizer | Transflective |
| Viewing Direction | 6:00 |
| Backlight | LED |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Connection | FPC (ZIF or hot-bar) |
| FPC Length | 30mm (standard) |
| FPC Pin Pitch | 0.5mm / 0.8mm / 1.0mm |
| Certifications | RoHS, REACH, CE |

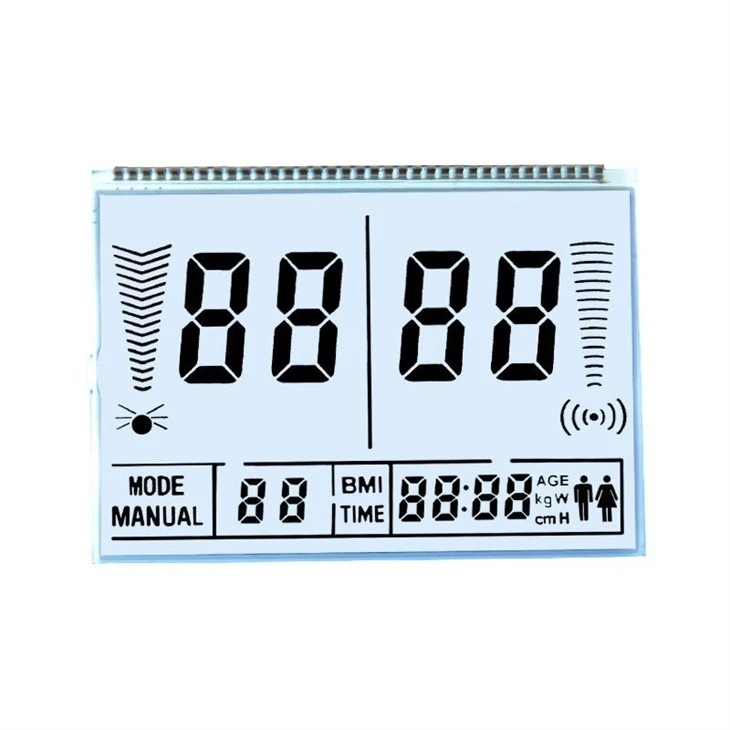

192×96 COG LCD Displays
Resolution 192 × 96 pixelsDisplay Format 192 dots × 96 dotsInterface 4-wire SPI, I²C, 8-bit parallel
Technical Specifications
| Display Format | 192 dots × 96 dots |
|---|---|
| Resolution | 192 × 96 pixels |
| Total Pixels | 18,432 |
| Structure | COG |
| Controller IC | UC1698U / ST75256 / NT7534 |
| Interface | 4-wire SPI, I²C, 8-bit parallel |
| Logic Supply Voltage | 3.0V or 5.0V |
| Display Supply Voltage | 9.0V – 13.0V |
| Operating Current | 4.0mA – 10.0mA |
| Sleep Mode Current | <1µA |
| Duty Cycle | 1/96 |
| Module Dimension | 96.0 × 60.0 × 6.0 mm |
| View Area | 82.0 × 42.0 mm |
| Active Area | 76.0 × 38.0 mm |
| Dot Size | 0.36 × 0.36 mm |
| Dot Pitch | 0.40 × 0.40 mm |
| LCD Mode | STN Positive, Transflective |
| Polarizer | Transflective |
| Viewing Direction | 6:00 |
| Backlight | LED |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Connection | FPC |
| FPC Length | 40mm |
| FPC Pin Pitch | 0.5mm / 0.8mm / 1.0mm |
| Certifications | RoHS, REACH, CE |

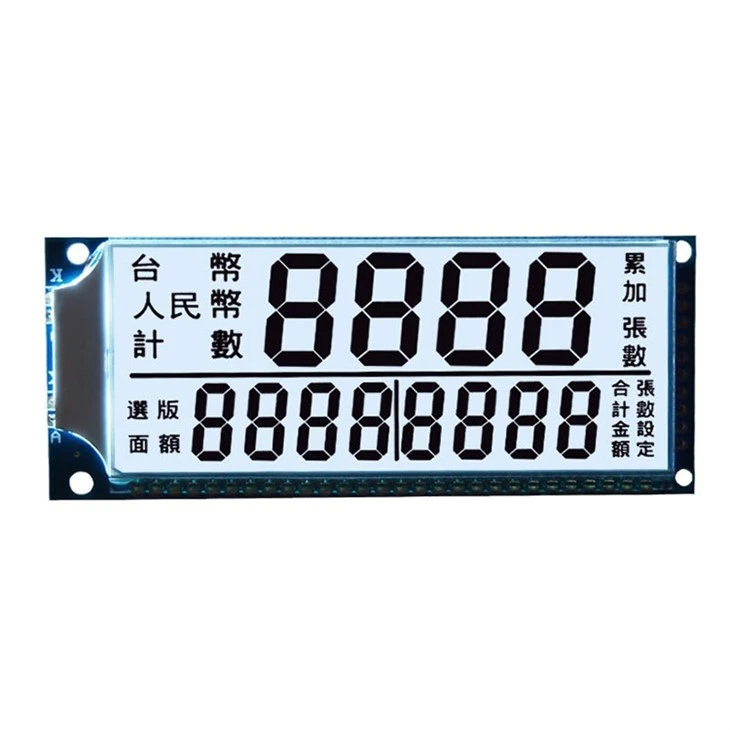

128×128 COG LCD Displays
Resolution 128 × 128 pixelsDisplay Format 128 dots × 128 dotsInterface 4-wire SPI, I²C, 8-bit parallel
Technical Specifications
| Display Format | 128 dots × 128 dots |
|---|---|
| Resolution | 128 × 128 pixels |
| Total Pixels | 16,384 |
| Aspect Ratio | 1:1 |
| Structure | COG |
| Controller IC | UC1698U / ST75256 / NT7534 |
| Interface | 4-wire SPI, I²C, 8-bit parallel |
| Logic Supply Voltage | 3.0V or 5.0V |
| Display Supply Voltage | 9.0V – 13.0V |
| Operating Current | 3.5mA – 8.0mA |
| Sleep Mode Current | <1µA |
| Duty Cycle | 1/128 |
| Module Dimension | 80.0 × 80.0 × 6.0 mm |
| View Area | 66.0 × 66.0 mm |
| Active Area | 60.0 × 60.0 mm |
| Dot Size | 0.40 × 0.40 mm |
| Dot Pitch | 0.44 × 0.44 mm |
| LCD Mode | STN Positive, Transflective |
| Polarizer | Transflective |
| Viewing Direction | 6:00 |
| Backlight | LED |
| Operating Temperature | -20℃ to +70℃ |
| Connection | FPC |
| FPC Length | 40mm |
| FPC Pin Pitch | 0.5mm / 0.8mm / 1.0mm |
| Certifications | RoHS, REACH, CE |

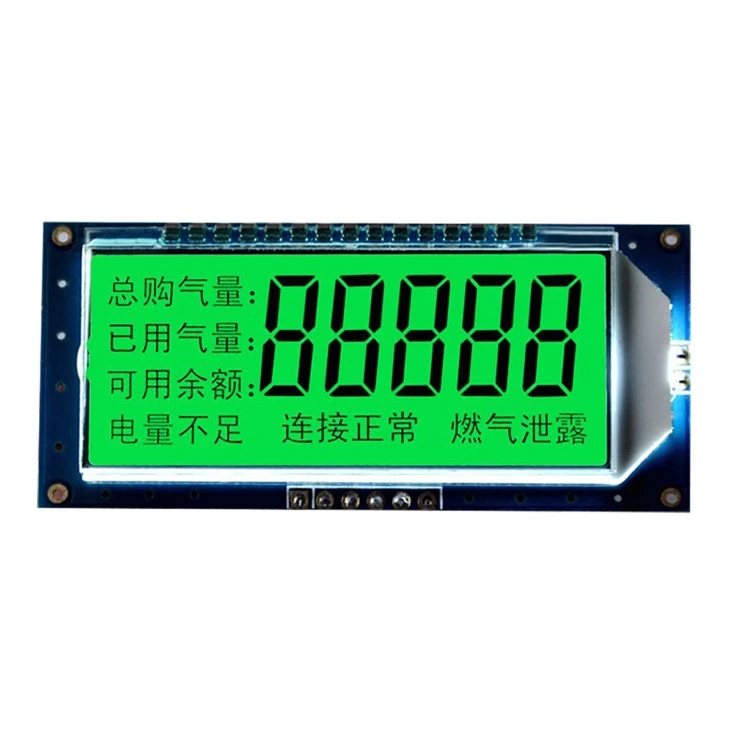

160×160 COG LCD Displays
Resolution 160 × 160 pixelsDisplay Format 160 dots × 160 dotsInterface 4-wire SPI, I²C, 8-bit parallel
Technical Specifications
| Display Format | 160 dots × 160 dots |
|---|---|
| Resolution | 160 × 160 pixels |
| Total Pixels | 25,600 |
| Aspect Ratio | 1:1 |
| Structure | COG |
| Controller IC | UC1698U / ST75256 / NT7534 |
| Interface | 4-wire SPI, I²C, 8-bit parallel |
| Logic Supply Voltage | 3.0V or 5.0V |
| Display Supply Voltage | 9.0V – 13.0V |
| Operating Current | 5.0mA – 12.0mA |
| Sleep Mode Current | <1µA |
| Duty Cycle | 1/160 |
| Module Dimension | 96.0 × 96.0 × 6.5 mm |
| View Area | 80.0 × 80.0 mm |
| Active Area | 72.0 × 72.0 mm |
| Dot Size | 0.40 × 0.40 mm |
| Dot Pitch | 0.45 × 0.45 mm |
| LCD Mode | STN Positive, Transflective |
| Polarizer | Transflective |
| Viewing Direction | 6:00 |
| Backlight | LED |
| Operating Temperature | -20℃ to +70℃ |
| Connection | FPC |
| FPC Length | 40mm |
| FPC Pin Pitch | 0.5mm / 0.8mm / 1.0mm |
| Certifications | RoHS, REACH, CE |

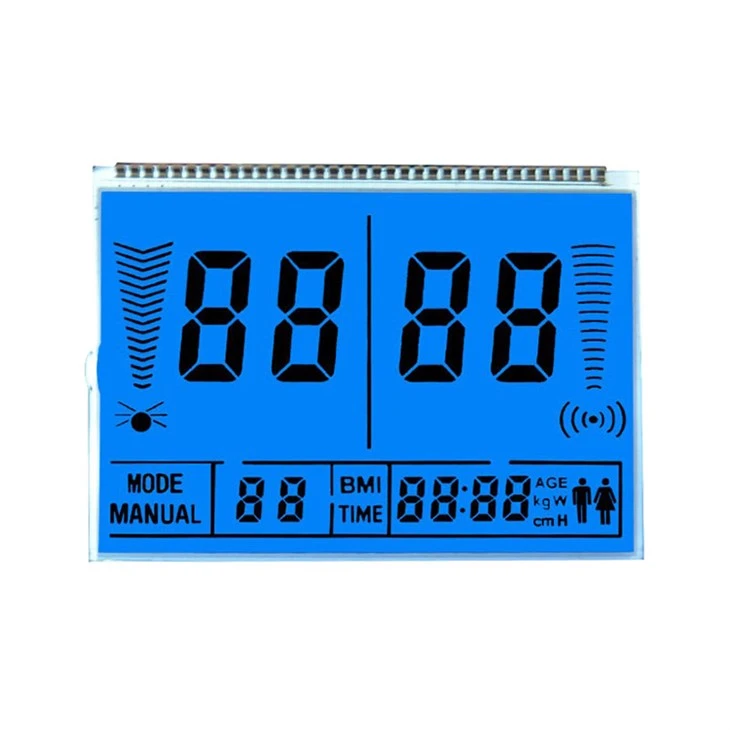

240×128 COG LCD Displays
Technical Specifications
—
COB Modules
9 modelsCOB (Chip-on-Board) modules mount the driver IC on the PCB and connect it to the glass with wire bonding, then encapsulate it in epoxy. This is the traditional rugged construction: it tolerates vibration, humidity and repeated assembly, and is available in the same character and graphic formats as the COG family — 1602, 2004, 122×32 through 320×240.

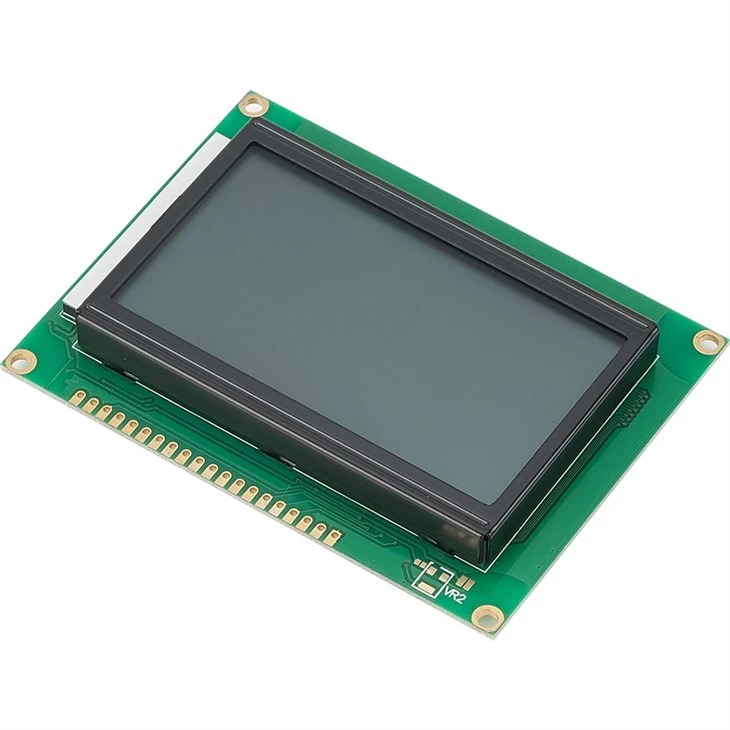

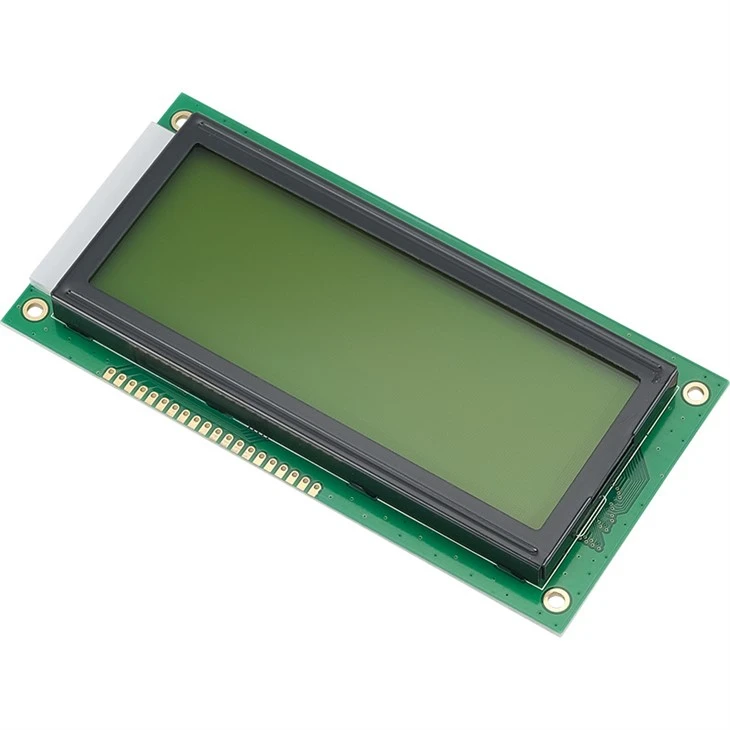

Non-Standard Inch/Resolution COB Modules
Resolution From 8×1 characters to 320×240 graphic; arbitrary custom resolutionsInterface Parallel, SPI, I²C, UART – we match your systemOperating Temperature Standard 0℃~+50℃, Industrial -20℃~+70℃, Wide -40℃~+85℃
Technical Specifications
| Display Type | Pen-segment, dot matrix , or character |
|---|---|
| Screen Diagonal | Any non-standard dimension from 0.5" to 12.0" |
| Resolution | From 8×1 characters to 320×240 graphic; arbitrary custom resolutions |
| Structure | COB – driver IC on PCB, wire-bonded and epoxy-encapsulated |
| LCD Mode | TN, HTN, STN, FSTN, VA – positive or negative, your choice |
| Polarizer | Reflective / Transflective / Transmissive |
| Viewing Direction | 6:00, 12:00, 3:00, 9:00 – optimized to your mounting |
| PCB Size & Shape | Fully custom – any outline, cutouts, mounting holes, edge connectors |
| Driver IC | Industry standard – your preference |
| Interface | Parallel, SPI, I²C, UART – we match your system |
| Logic Voltage | 2.5V – 5.5V |
| Operating Current | Optimized for low power – typically 0.5mA – 20mA depending on size and IC |
| Sleep Mode Current | <1µA |
| Operating Temperature | Standard 0℃~+50℃, Industrial -20℃~+70℃, Wide -40℃~+85℃ |
| Storage Temperature | -30℃ to +80℃ |
| Connection | Pin headers, FPC, terminal blocks, or custom wiring harness |
| On-board Components | MCU, RTC, flash memory, temperature sensor, backlight driver, level shifters |
| Embedded Firmware | Pre-programmed display drivers, font libraries , command parser |
| Certifications | RoHS, REACH, CE – full compliance documentation |
| Warranty | 12 months, extended available |

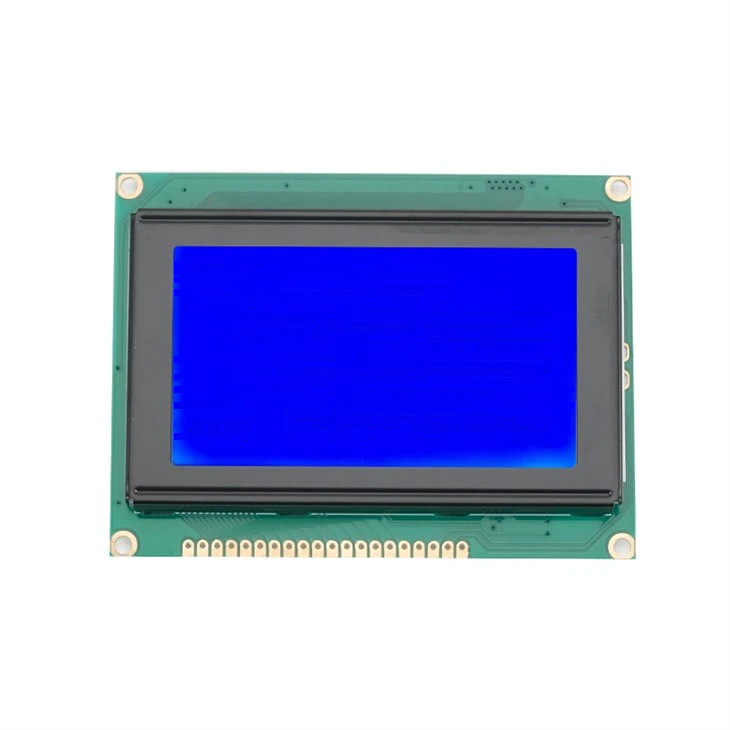

1602 COB Modules
Technical Specifications
—

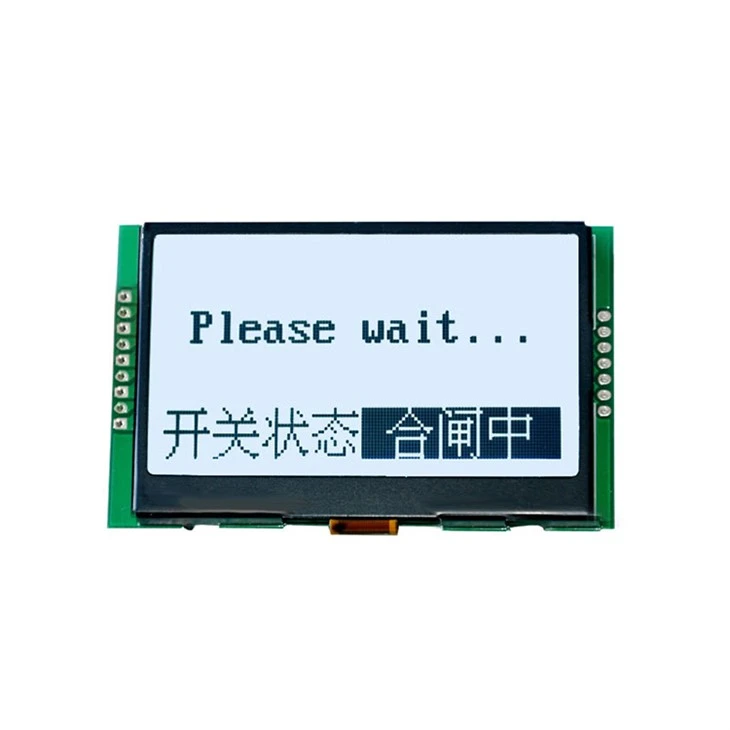

2004 COB Modules
Technical Specifications
—

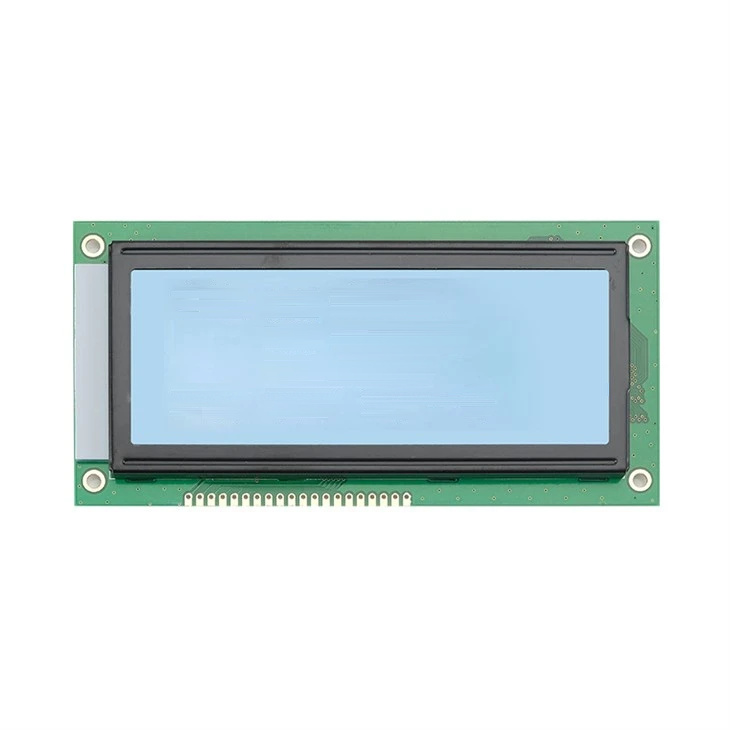

122×32 COB Modules
Technical Specifications
—

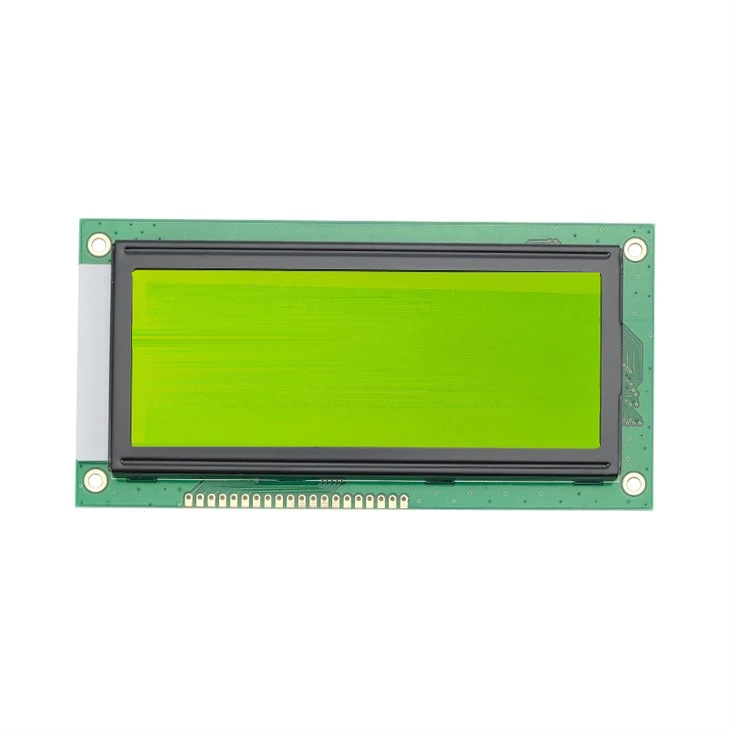

128×32 COB Modules
Technical Specifications
—

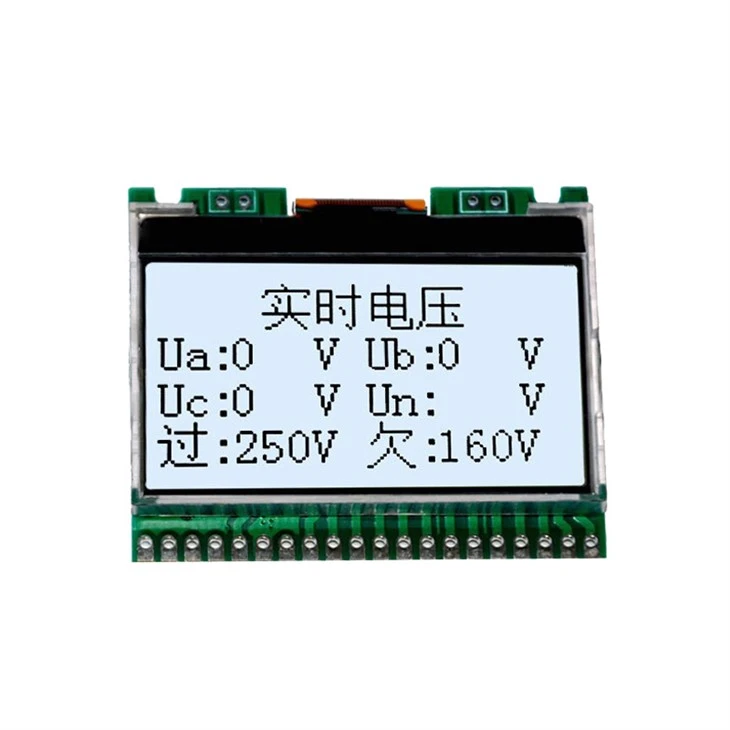

128×64 COB Modules
Technical Specifications
—

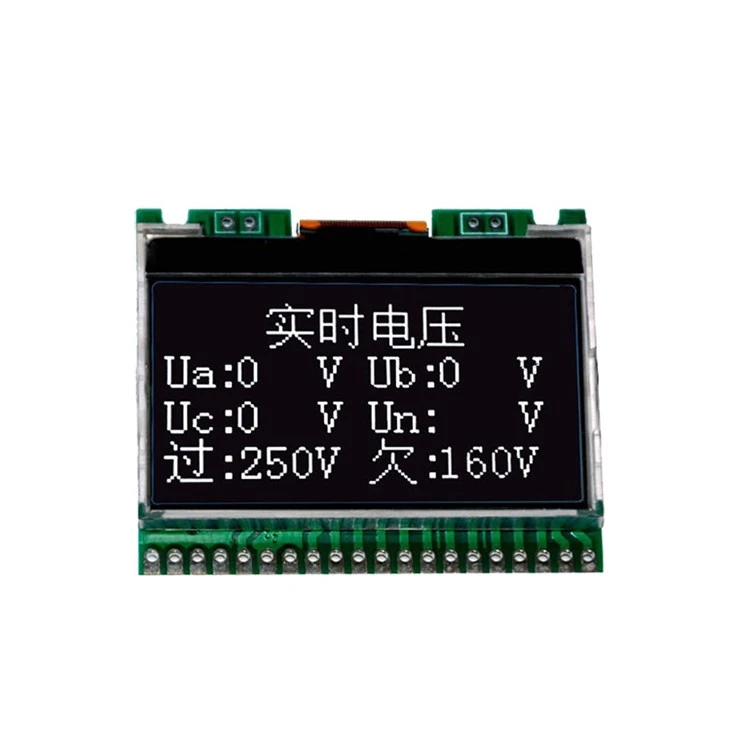

192×64 COB Modules
Technical Specifications
—

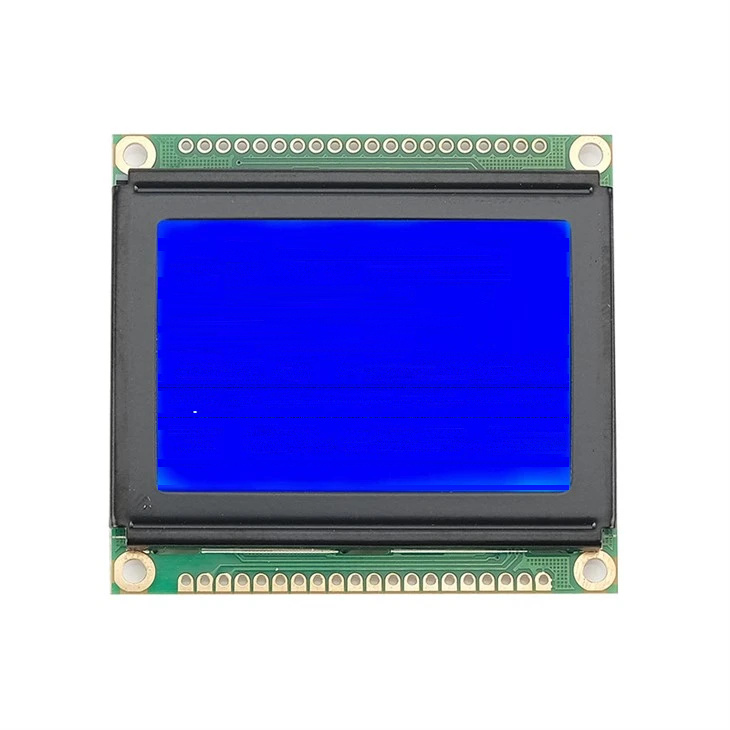

240×128 COB Modules
Resolution 240 × 128 dotsInterface 8-bit or 4-bit parallel, 8080/6800Operating Temperature -20°C to +70°C
Technical Specifications
| Display Type | COB Graphic LCD |
|---|---|
| Resolution | 240 × 128 dots |
| Viewing Area | 114.0 × 64.0 mm |
| Active Area | 107.0 × 57.0 mm |
| Dot Size | 0.40 × 0.40 mm |
| Dot Pitch | 0.44 × 0.44 mm |
| Controller IC | RA8806 or equivalent |
| Interface | 8-bit or 4-bit parallel, 8080/6800 |
| Supply Voltage | 5.0V or 3.3V |
| Current Consumption | 5 mA without backlight |
| Backlight | LED, optional colors |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Module Dimension | 152.0 × 86.0 × 11.0 mm |
| Weight | 85 grams |

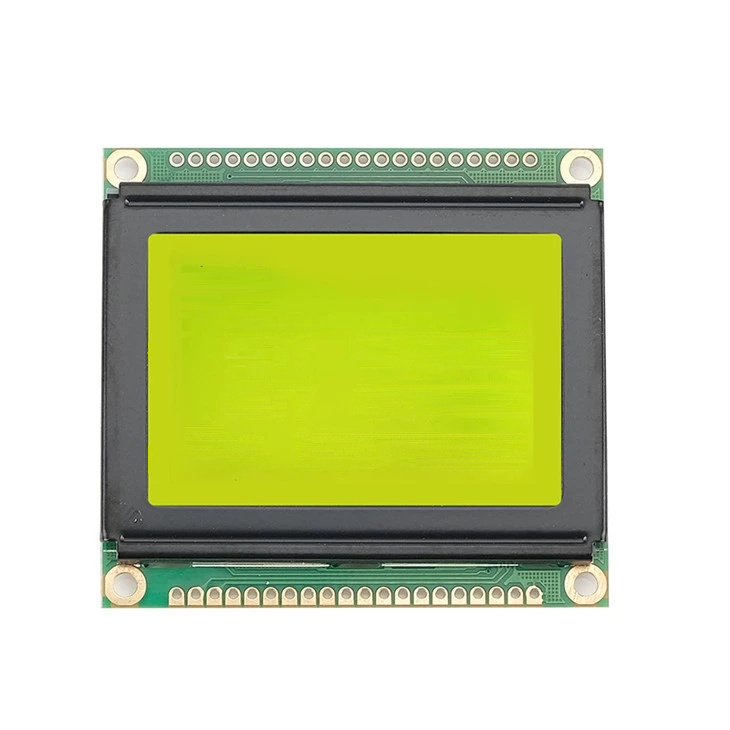

320×240 COB Modules
Technical Specifications
—
OLED Displays
14 modelsSelf-emissive OLED displays need no backlight, so they are extremely thin, offer a very wide viewing angle and hold high contrast even in the dark. The range covers micro-displays from 0.42 inch to 2.42 inch, monochrome and area-colour, driven by I²C or SPI with widely available controller ICs. Because each pixel emits its own light, black is truly black — contrast is effectively infinite.
Non-Standard Inch OLED Displays
Resolution QVGA ~ 4KInterface MCU / RGB / SPI / MIPIOperating Temperature -30℃ ~ 80℃
Technical Specifications
| Display Technology | OLED (Organic Light-Emitting Diode) |
|---|---|
| Screen Diagonal | 0.96 Inch ~ 65 Inch |
| Resolution | QVGA ~ 4K |
| Contrast Ratio | Typically 1,000,000:1 |
| Color Support | Up to 16.7 Million Colors, NTSC ≥ 100% |
| Response Time | 0.1ms ~ 5ms |
| Viewing Angle | 170°/170° |
| Brightness | 200 cd/m² ~ 800 cd/m² |
| Operating Temperature | -30℃ ~ 80℃ |
| Panel Type | AMOLED / PMOLED; Rigid / Flexible |
| Interface | MCU / RGB / SPI / MIPI |
| Environmental Standard | RoHS Compliant |

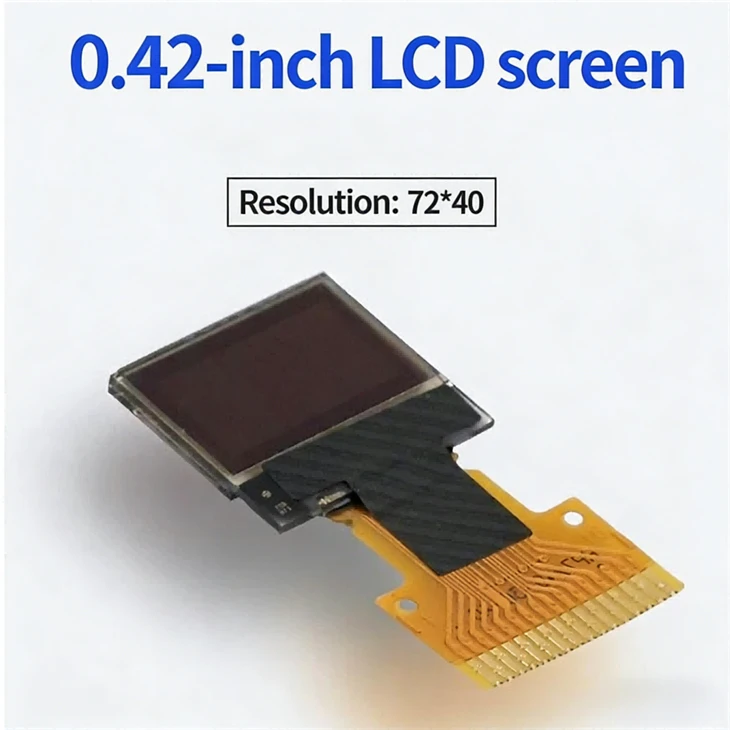

0.42 Inch OLED Displays
Resolution 72 × 40 pixelsScreen Diagonal 0.42 inchInterface I²C or SPI
Technical Specifications
| Screen Diagonal | 0.42 inch |
|---|---|
| Display Type | Passive Matrix OLED |
| Resolution | 72 × 40 pixels |
| Pixel Pitch | 0.12 × 0.12 mm |
| Active Area | ~8.64 × 4.80 mm |
| Module Outline | ~12.0 × 11.0 × 1.2 mm |
| Driver IC | SSD1306 |
| Interface | I²C or SPI |
| Logic Voltage | 3.3V – 5V |
| Supply Current | < 5 µA |
| Contrast Ratio | Infinite |
| Brightness | 100 – 120 cd/m² |
| Viewing Angle | > 160° |
| Response Time | < 10 µs |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Lifetime | > 50,000 hours |
| Weight | ~0.8 g |
| RoHS / REACH | Compliant |

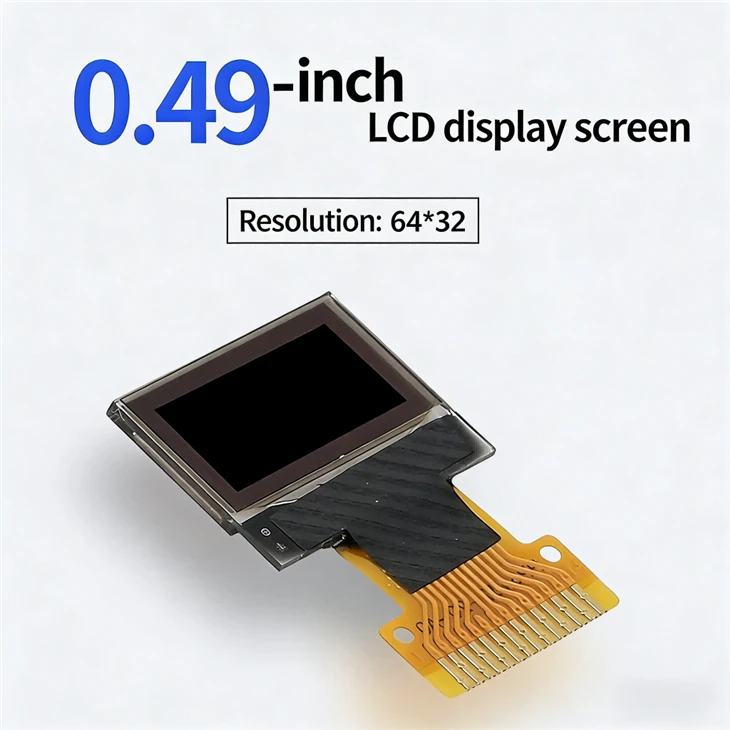

0.49 Inch OLED Displays
Resolution 64 × 32 pixelsScreen Diagonal 0.49 inchInterface I²C or SPI
Technical Specifications
| Screen Diagonal | 0.49 inch |
|---|---|
| Display Type | Passive Matrix OLED |
| Color Options | White / Blue / Yellow |
| Resolution | 64 × 32 pixels |
| Pixel Pitch | 0.15 × 0.15 mm |
| Active Area | ~9.66 × 4.86 mm |
| Module Outline | ~14.5 × 11.5 × 1.2 mm |
| Driver IC | SSD1306 |
| Interface | I²C or SPI |
| Logic Voltage | 3.3V – 5V |
| Supply Current | ~10 – 15 mA @ 3.3V |
| Contrast Ratio | Infinite |
| Brightness | 100 – 120 cd/m² |
| Viewing Angle | > 160° |
| Response Time | < 10 µs |
| Operating Temperature | -40°C to +80°C |
| Lifetime | > 50,000 hours |
| Weight | ~0.7 g |
| RoHS / REACH | Compliant |
0.54 Inch OLED Displays
Resolution 64 × 32 pixelsScreen Diagonal 0.54 inchInterface I²C or SPI
Technical Specifications
| Screen Diagonal | 0.54 inch |
|---|---|
| Display Type | Passive Matrix OLED |
| Color Options | White / Blue / Yellow |
| Resolution | 64 × 32 pixels |
| Pixel Pitch | 0.15 × 0.15 mm |
| Active Area | ~9.66 × 4.86 mm |
| Module Outline | ~14.5 × 11.5 × 1.2 mm |
| Driver IC | SSD1306 |
| Interface | I²C or SPI |
| Logic Voltage | 3.3V – 5V |
| Supply Current | < 5 µA |
| Contrast Ratio | Infinite |
| Brightness | 100 – 120 cd/m² |
| Viewing Angle | > 160° |
| Response Time | < 10 µs |
| Operating Temperature | -40°C to +80°C |
| Lifetime (to Half Brightness) | > 50,000 hours |
| Weight | ~0.7 g |
| RoHS / REACH | Compliant |
0.66 Inch OLED Displays
Resolution 64 × 32 pixelsScreen Diagonal 0.54 inchInterface I²C or SPI
Technical Specifications
| Screen Diagonal | 0.54 inch |
|---|---|
| Display Type | Passive Matrix OLED |
| Color Options | White / Blue / Yellow |
| Resolution | 64 × 32 pixels |
| Pixel Pitch | 0.15 × 0.15 mm |
| Active Area | ~9.66 × 4.86 mm |
| Module Outline | ~14.5 × 11.5 × 1.2 mm |
| Driver IC | SSD1306 |
| Interface | I²C or SPI |
| Logic Voltage | 3.3V – 5V |
| Supply Current | < 5 µA |
| Contrast Ratio | Infinite |
| Brightness | 100 – 120 cd/m² |
| Viewing Angle | > 160° |
| Response Time | < 10 µs |
| Operating Temperature | -40°C to +80°C |
| Lifetime (to Half Brightness) | > 50,000 hours |
| Weight | ~0.7 g |
| RoHS / REACH | Compliant |
0.69 Inch OLED Displays
Resolution 96 × 32 pixelsScreen Diagonal 0.69 inchInterface I²C or SPI
Technical Specifications
| Screen Diagonal | 0.69 inch |
|---|---|
| Display Type | Passive Matrix OLED |
| Color Options | White / Blue / Yellow |
| Resolution | 96 × 32 pixels |
| Pixel Pitch | 0.15 × 0.15 mm |
| Active Area | ~14.4 × 4.8 mm |
| Module Outline | ~19.0 × 9.5 × 1.2 mm |
| Driver IC | SSD1306 / SH1106 |
| Interface | I²C or SPI |
| Logic Voltage | 3.3V – 5V |
| Supply Current | < 5 µA |
| Contrast Ratio | Infinite |
| Brightness | 100 – 120 cd/m² |
| Viewing Angle | > 160° |
| Response Time | < 10 µs |
| Operating Temperature | -40°C to +80°C |
| Lifetime (to Half Brightness) | > 50,000 hours |
| Weight | ~0.8 g |
| RoHS / REACH | Compliant |
0.72 Inch OLED Displays
Resolution 80 × 48 pixelsScreen Diagonal 0.72 inchInterface I²C or SPI
Technical Specifications
| Screen Diagonal | 0.72 inch |
|---|---|
| Display Type | Passive Matrix OLED |
| Resolution | 80 × 48 pixels |
| Pixel Pitch | 0.15 × 0.15 mm |
| Active Area | ~12.0 × 7.2 mm |
| Module Outline | ~17.5 × 12.0 × 1.2 mm |
| Interface | I²C or SPI |
| Logic Voltage | 3.3V – 5V |
| Supply Current | < 5 µA |
| Contrast Ratio | Infinite |
| Brightness | 100 – 120 cd/m² |
| Viewing Angle | > 160° |
| Response Time | < 10 µs |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Lifetime | > 50,000 hours |
| Weight | ~0.8 g |
| RoHS / REACH | Compliant |

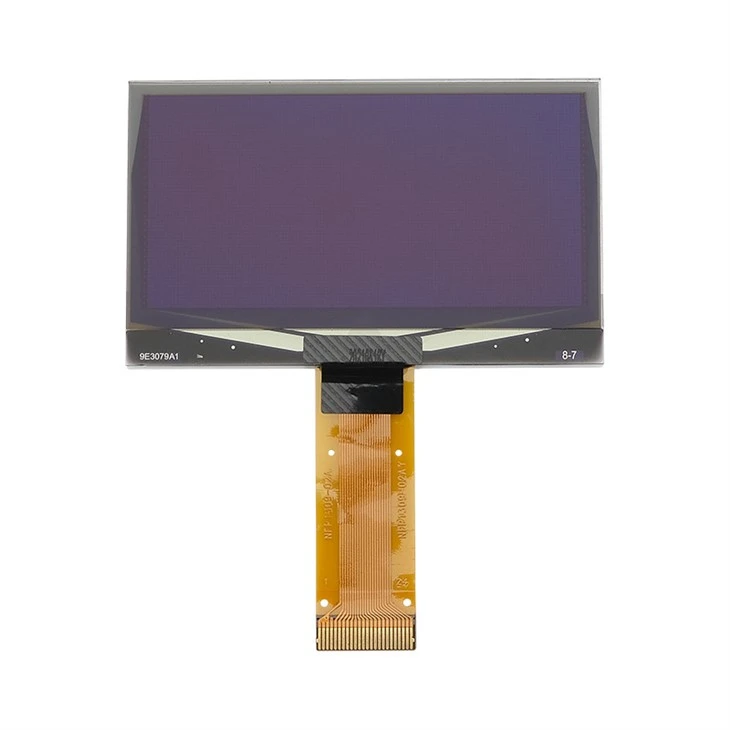

0.78 Inch OLED Displays
Resolution 80 × 64 pixelsScreen Diagonal 0.78 inchOperating Temperature -40°C to +80°C
Technical Specifications
| Screen Diagonal | 0.78 inch |
|---|---|
| Display Type | Passive Matrix OLED |
| Resolution | 80 × 64 pixels |
| Active Area | ~12.0 × 9.6 mm |
| Module Outline | ~17.5 × 14.5 × 1.2 mm |
| Driver IC | SSD1306 / SH1106 |
| Logic Voltage | 3.3V – 5V |
| Sleep Current | < 5 µA |
| Contrast Ratio | Infinite |
| Brightness | 100 – 120 cd/m² |
| Viewing Angle | > 160° |
| Response Time | < 10 µs |
| Operating Temperature | -40°C to +80°C |
| Lifetime | > 50,000 hours |
| Weight | ~0.9 g |
| RoHS / REACH | Compliant |
0.87 Inch OLED Displays
Resolution 128 × 128 PixelsDisplay Size 0.87 InchInterface I2C / SPI
Technical Specifications
| Display Size | 0.87 Inch |
|---|---|
| Resolution | 128 × 128 Pixels |
| Display Type | Self-emissive OLED |
| Display Color | Monochrome |
| Contrast Ratio | ≥10000:1 |
| Viewing Angle | Full viewing angle |
| Brightness | 100–200 cd/m² |
| Driver IC | SSD1312 / Compatible models |
| Interface | I2C / SPI |
| Operating Voltage | 3.3V |
| Operating Temperature | -40℃ ~ +80℃ |
| Module Type | Glass + FPC / PCB optional |
| Certifications | RoHS compliant |

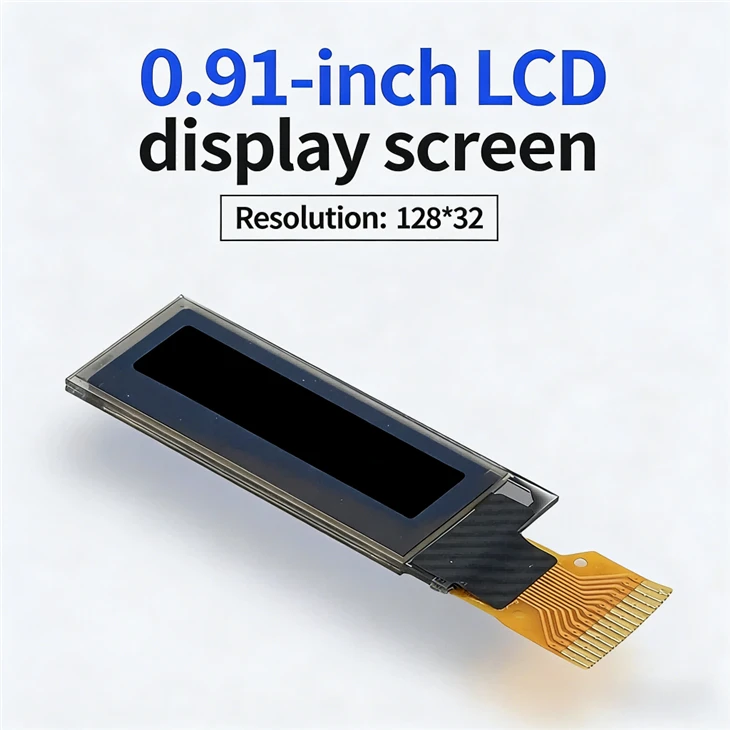

0.91 Inch OLED Displays
Resolution 128 × 32 PixelsDisplay Size 0.91 InchInterface I2C / SPI
Technical Specifications
| Display Size | 0.91 Inch |
|---|---|
| Resolution | 128 × 32 Pixels |
| Display Technology | Self-Emissive OLED |
| Contrast Ratio | ≥ 15000:1 |
| Viewing Angle | 170°(H) / 170°(V), No Color Shift |
| Brightness | 120 - 220 cd/m² |
| Driver IC | SSD1309 / Compatible Models |
| Interface | I2C / SPI |
| Operating Voltage | 3.3V |
| Operating Temperature | -40℃ ~ 85℃ |
| Module Thickness | ≤ 1.2mm |
| Certifications | RoHS Compliant |
| Defect Rate | ≤ 0.3% |
0.96 Inch OLED Displays
Resolution 128 × 64 PixelsDisplay Size 0.96 InchInterface I2C / SPI
Technical Specifications
| Display Size | 0.96 Inch |
|---|---|
| Resolution | 128 × 64 Pixels |
| Display Technology | Self-Emissive OLED |
| Display Color | Monochrome ; Color |
| Contrast Ratio | ≥ 20000:1 |
| Viewing Angle | 170°(H) / 170°(V), Full View, No Distortion |
| Brightness | 150 - 250 cd/m² |
| Driver IC | SSD1306 / SH1106 |
| Interface | I2C / SPI |
| Operating Voltage | 3.3V DC |
| Operating Temperature | -30℃ ~ 80℃ |
| Module Thickness | ≤ 1.0mm |
| Certifications | RoHS, CE, FCC Compliant |
| Lifetime | ≥ 50,000 Hours |

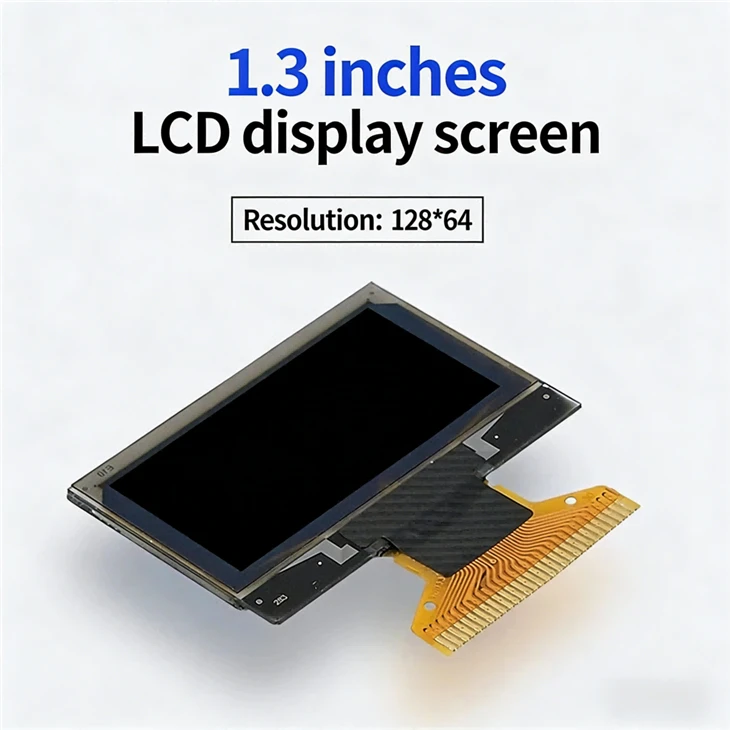

1.3 Inch OLED Displays
Resolution 128 × 64 PixelsDisplay Size 1.3 InchInterface I2C / SPI
Technical Specifications
| Display Size | 1.3 Inch |
|---|---|
| Resolution | 128 × 64 Pixels |
| Display Technology | Self-Emissive OLED |
| Display Color | Monochrome ; Color |
| Contrast Ratio | ≥ 15000:1 |
| Viewing Angle | 160°(H) / 160°(V), Full View, No Color Shift |
| Brightness | 120 - 220 cd/m² |
| Driver IC | SH1106 / SH1116G / SSD1312 |
| Interface | I2C / SPI |
| Operating Voltage | 3.3V ~ 5V DC |
| Operating Temperature | -40℃ ~ 70℃ |
| Module Thickness | ≤ 1.2mm |
| Certifications | RoHS, CE, FCC, ISO 9000 Compliant |
| Lifetime | ≥ 45,000 Hours |

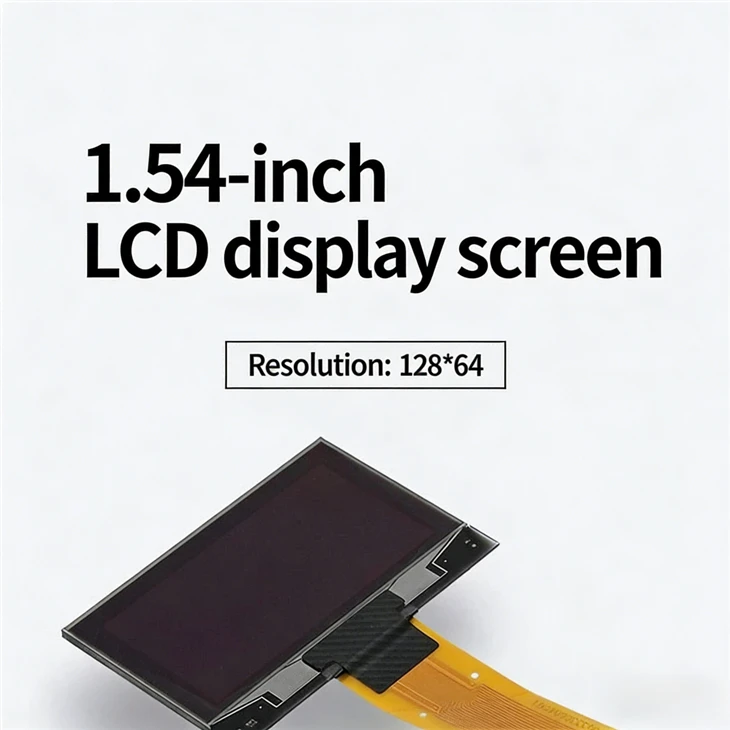

1.54 Inch OLED Displays
Resolution 128 × 64 pixelsScreen Diagonal 1.54 inch
Technical Specifications
| Screen Diagonal | 1.54 inch |
|---|---|
| Resolution | 128 × 64 pixels |
| Pixel Arrangement | Active matrix |
| Color | Monochrome: White / Yellow / Blue |
| Brightness | 120 cd/m² ; up to 300 cd/m² |
| Contrast Ratio | >10,000:1 |
| Response Time | ≤10 µs |
| Viewing Angle | Full 160° |
2.42 Inch OLED Displays
Resolution 128 × 64 pixelsScreen Diagonal 1.54 inch
Technical Specifications
| Screen Diagonal | 1.54 inch |
|---|---|
| Resolution | 128 × 64 pixels |
| Pixel Arrangement | Active matrix |
| Color | Monochrome: White / Yellow / Blue |
| Brightness | 120 cd/m² ; up to 300 cd/m² |
| Contrast Ratio | >10,000:1 |
| Response Time | ≤10 µs |
| Viewing Angle | Full 160° |
TFT Displays
19 modelsa-Si TFT active-matrix panels deliver full colour with fast response and a wide viewing angle, from 0.69 inch micro-displays up to 10.1 inch standard modules. Interface options span 8/16-bit MCU, RGB, SPI, LVDS and MIPI, and resistive or capacitive touch can be laminated on request. Standard module outlines are available, and custom sizes are produced to drawing.
Any Size TFT Displays
Resolution Customizable according to sizeDisplay Size Any Custom SizeInterface MCU / SPI / RGB / LVDS / MIPI
Technical Specifications
| Display Type | TFT Active Matrix LCD |
|---|---|
| Display Size | Any Custom Size |
| Panel Type | TN / IPS / VA (optional) |
| Resolution | Customizable according to size |
| Display Color | 262K / 16.7M |
| Backlight | White LED, long lifetime |
| Brightness | 200 ~ 1500+ cd/m² |
| Contrast Ratio | 300:1 ~ 1000:1 |
| Viewing Angle | Customizable |
| Response Time | 5ms ~ 25ms |
| Input Voltage | 3.3V / 5V / 12V |
| Interface | MCU / SPI / RGB / LVDS / MIPI |
| Operating Temperature | -20°C ~ +70°C Industrial: -40°C ~ +85°C |
| Outline Dimension | Fully customizable |
| Module Thickness | Customizable |
| FPC / Pin | Customizable definition |
| Touch Panel | Resistive / Capacitive |
| Surface Treatment | Anti-glare / Anti-reflection |
| Reliability | Vibration / Shock / Aging test passed |
| Compliance | RoHS, CE |
0.69 Inch Standard TFT
Resolution 80×160 pixels or 160×80, 128×64 variantsScreen Diagonal 0.69 inchInterface 4-wire SPI, I²C, 3-wire SPI, optional 8/16-bit parallel
Technical Specifications
| Screen Diagonal | 0.69 inch |
|---|---|
| Display Technology | a-Si TFT, active matrix |
| Resolution | 80×160 pixels or 160×80, 128×64 variants |
| Pixel Pitch | ~0.135 × 0.135 mm |
| Active Area | ~10.8 × 21.6 mm |
| Color Depth | 262K / 65K RGB |
| Contrast Ratio | 500 : 1 |
| Brightness | 300 – 400 cd/m² |
| Viewing Angle | Full for IPS option; standard 6 o'clock for non-IPS |
| Interface | 4-wire SPI, I²C, 3-wire SPI, optional 8/16-bit parallel |
| Backlight | 1 or 2 white LEDs, PWM dimmable |
| Operating Voltage | I/O: 1.8V – 3.3V; Logic: 2.8V – 3.3V |
| Power Consumption | < 40 mW ; < 150 mW |
| Operating Temperature | -20°C to +70°C |
| Module Outline | 26.0 × 13.5 × 1.8 mm |
| Weight | ~1.5 g |
0.85 Inch Standard TFT
Resolution 128 × 64 pixelsScreen Diagonal 0.85 inchInterface 4-wire SPI, I²C, or 8-bit parallel
Technical Specifications
| Screen Diagonal | 0.85 inch |
|---|---|
| Display Technology | a-Si TFT, active matrix |
| Resolution | 128 × 64 pixels |
| Pixel Pitch | ~0.135 × 0.135 mm |
| Active Area | ~10.8 × 5.4 mm |
| Color Depth | 262K / 65K RGB |
| Contrast Ratio | 350 : 1 |
| Brightness | 250 – 350 cd/m² |
| Viewing Direction | 6 o'clock/ 12 o'clock optional |
| Interface | 4-wire SPI, I²C, or 8-bit parallel |
| Backlight Type | 1 or 2 white LEDs, constant current drive |
| Operating Voltage | I/O: 1.8V – 3.3V; Logic: 2.8V – 3.3V |
| Power Consumption | < 30 mW; < 120 mW |
| Operating Temperature | -20°C to +70°C |
| Module Outline | 18.5 × 12.0 × 1.8 mm |
| Weight | ~1.2 g |

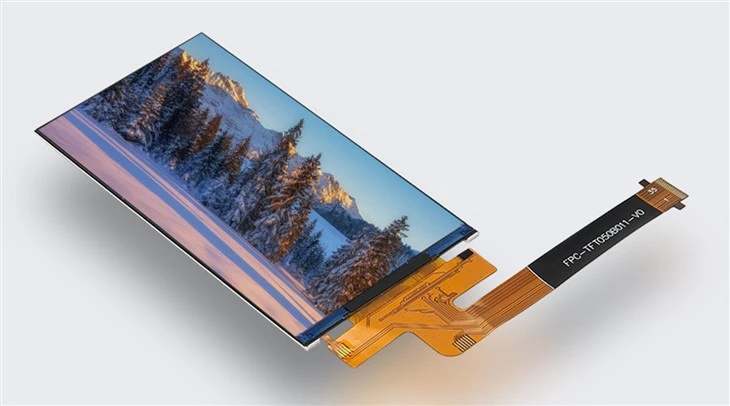

1.14 Inch Standard TFT
Screen Diagonal 1.14 inchInterface 4-wire SPI , I²COperating Temperature -20°C to +70°C
Technical Specifications
| Screen Diagonal | 1.14 inch |
|---|---|
| Resolution Options | 135×240 / 240×135 |
| Display Technology | a-Si TFT, active matrix |
| Color Depth | 262K |
| Driver IC | ST7789V |
| Interface | 4-wire SPI , I²C |
| Logic Voltage | 3.3V |
| Brightness | 350–450 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight | 1 or 2 white LEDs, PWM dimmable |
| Power Consumption (active) | <180 mW |
| Sleep Current | <10 µA |
| Operating Temperature | -20°C to +70°C |
| Module Outline (portrait) | ~17.6 × 31.0 × 1.8 mm |
| Weight | ~2.0 g |

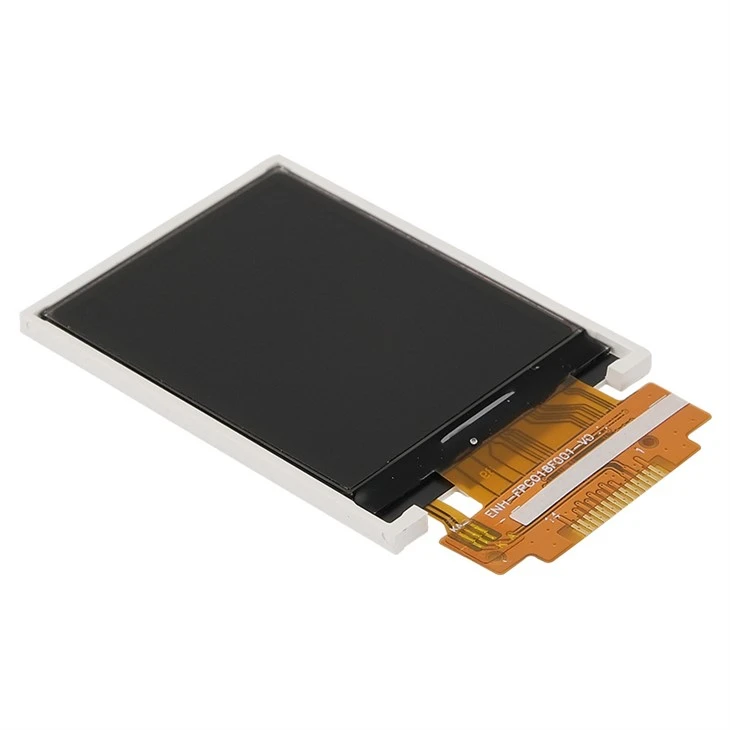

1.3 Inch Standard TFT
Screen Diagonal 1.14 inchInterface 4-wire SPI , I²COperating Temperature -20°C to +70°C
Technical Specifications
| Screen Diagonal | 1.14 inch |
|---|---|
| Resolution Options | 135×240 / 240×135 |
| Display Technology | a-Si TFT, active matrix |
| Color Depth | 262K |
| Driver IC | ST7789V |
| Interface | 4-wire SPI , I²C |
| Logic Voltage | 3.3V |
| Brightness | 350–450 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight | 1 or 2 white LEDs, PWM dimmable |
| Power Consumption (active) | <180 mW |
| Sleep Current | <10 µA |
| Operating Temperature | -20°C to +70°C |
| Module Outline (portrait) | ~17.6 × 31.0 × 1.8 mm |
| Weight | ~2.0 g |
1.54 Inch Standard TFT
Resolution 128 × 128Screen Diagonal 1.54 inchInterface 4-wire SPI , I²C
Technical Specifications
| Screen Diagonal | 1.54 inch |
|---|---|
| Resolution | 128 × 128 |
| Display Technology | a-Si TFT, active matrix |
| Color Depth | 262K (18-bit) |
| Driver IC | ST7735S |
| Interface | 4-wire SPI , I²C |
| Logic Voltage | 3.3V |
| Brightness | 300–400 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight | 1 or 2 white LEDs, PWM dimmable |
| Active Area | ~25.5 × 26.5 mm |
| Module Outline | ~29.0 × 31.0 × 1.8 mm |
| Power Consumption (active) | <150 mW |
| Sleep Current | <10 µA |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Weight | ~4.0 g |
| RoHS / REACH | Compliant |

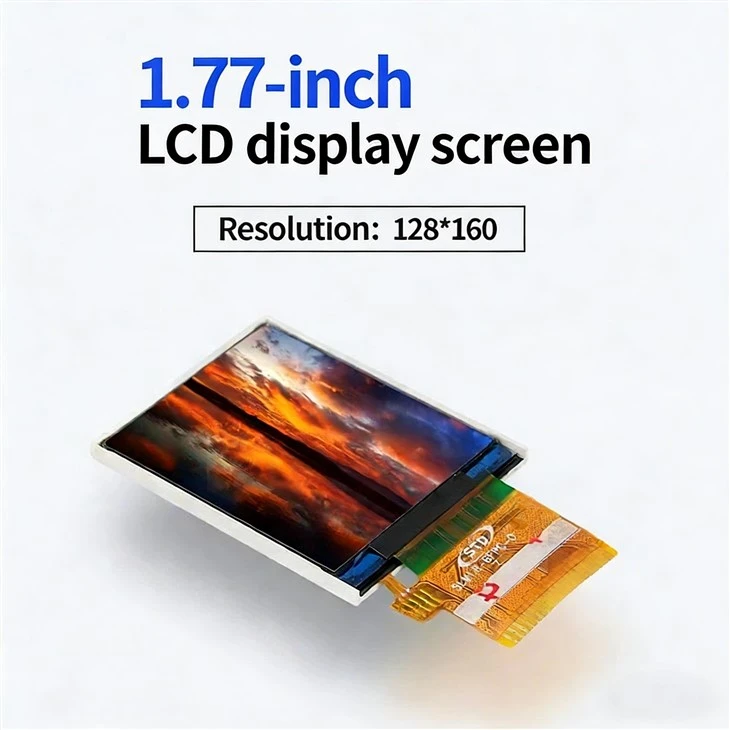

1.77 Inch Standard TFT
Resolution 128 × 160Screen Diagonal 1.77 inchInterface 4-wire SPI , I²C
Technical Specifications
| Screen Diagonal | 1.77 inch |
|---|---|
| Resolution | 128 × 160 |
| Display Technology | a-Si TFT, active matrix |
| Color Depth | 262K |
| Driver IC | ST7735S / ILI9163 |
| Interface | 4-wire SPI , I²C |
| Logic Voltage | 3.3V |
| Brightness | 300–400 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight | 2 white LEDs, PWM dimmable |
| Active Area | ~28.0 × 35.0 mm |
| Module Outline | ~34.0 × 45.0 × 2.0 mm |
| Power Consumption (active) | <160 mW |
| Sleep Current | <10 µA |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Weight | ~5.0 g |

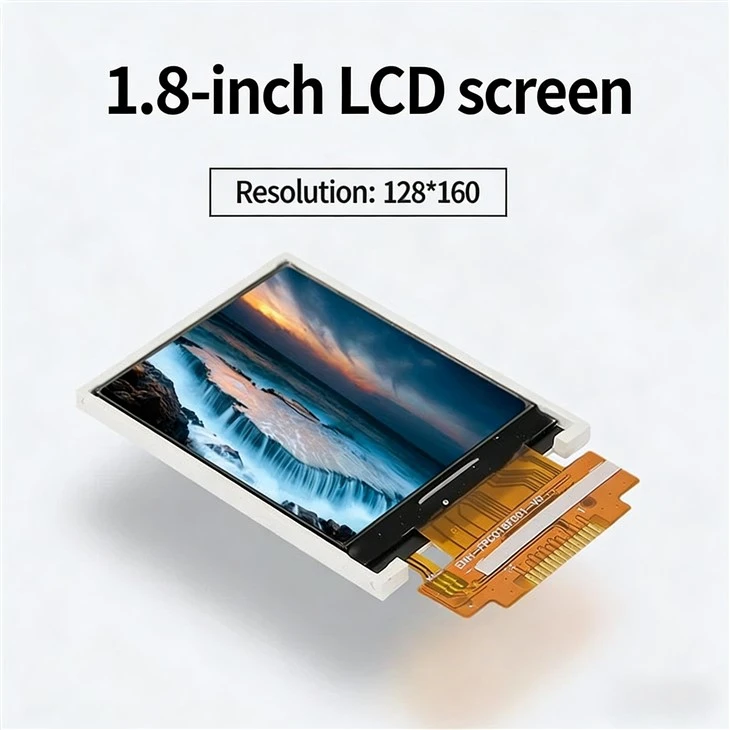

1.8 Inch Standard TFT
Technical Specifications
—
2.0 Inch Standard TFT
Technical Specifications
—
2.3 Inch Standard TFT
Technical Specifications
—

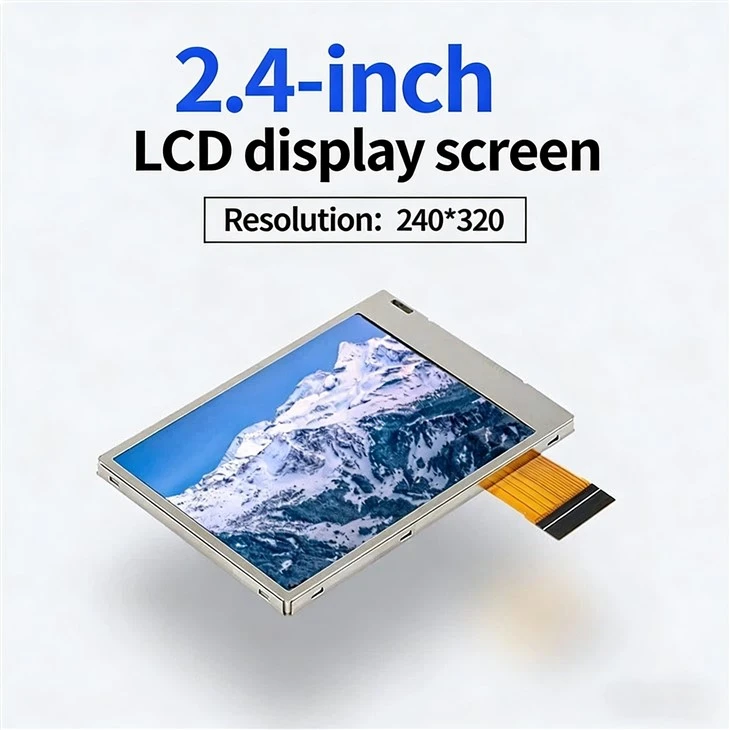

2.4 Inch Standard TFT
Resolution 240(RGB) × 320Screen Diagonal 2.4 inchInterface MCU 8-bit / 16-bit / SPI
Technical Specifications
| Display Type | TFT Active Matrix LCD |
|---|---|
| Screen Diagonal | 2.4 inch |
| Resolution | 240(RGB) × 320 |
| Panel Type | TN |
| Display Color | 262K / 16.7M |
| Backlight | White LED |
| Brightness | 250 ~ 350 cd/m² |
| Contrast Ratio | 300:1 |
| Viewing Angle | 60/50/55/50 |
| Response Time | 10ms |
| Interface | MCU 8-bit / 16-bit / SPI |
| Input Voltage | 3.3V |
| Operating Temperature | -20°C ~ +70°C |
| Outline Dimension | Standard 2.4" module size |
| Touch Panel | Optional |
| Compliance | RoHS, CE |
2.8 Inch Standard TFT
Resolution 240 × 400Screen Diagonal 2.8 InchInterface MCU 8-bit/16-bit, SPI, RGB
Technical Specifications
| Display Type | TFT Active Matrix LCD |
|---|---|
| Screen Diagonal | 2.8 Inch |
| Resolution | 240 × 400 |
| Panel Type | TN |
| Display Color | 262K / 16.7M |
| Backlight | White LED, long lifetime |
| Brightness | 250 ~ 350 cd/m² |
| Contrast Ratio | 300:1 |
| Response Time | 8 ~ 12 ms |
| Viewing Angle | 60/50/55/50 |
| Interface | MCU 8-bit/16-bit, SPI, RGB |
| Input Voltage | 3.3V |
| Operating Temperature | -20°C ~ +70°C |
| Outline Dimension | Standard 2.8" TFT module size |
| Active Area | Customized for standard size |
| Touch Panel | Optional |
| Compliance | RoHS, CE |
3.2 Inch Standard TFT
Resolution 240 × 400Screen Diagonal 2.8 InchInterface MCU 8-bit/16-bit, SPI, RGB
Technical Specifications
| Display Type | TFT Active Matrix LCD |
|---|---|
| Screen Diagonal | 2.8 Inch |
| Resolution | 240 × 400 |
| Panel Type | TN |
| Display Color | 262K / 16.7M |
| Backlight | White LED, long lifetime |
| Brightness | 250 ~ 350 cd/m² |
| Contrast Ratio | 300:1 |
| Response Time | 8 ~ 12 ms |
| Viewing Angle | 60/50/55/50 |
| Interface | MCU 8-bit/16-bit, SPI, RGB |
| Input Voltage | 3.3V |
| Operating Temperature | -20°C ~ +70°C |
| Outline Dimension | Standard 2.8" TFT module size |
| Active Area | Customized for standard size |
| Touch Panel | Optional |
| Compliance | RoHS, CE |

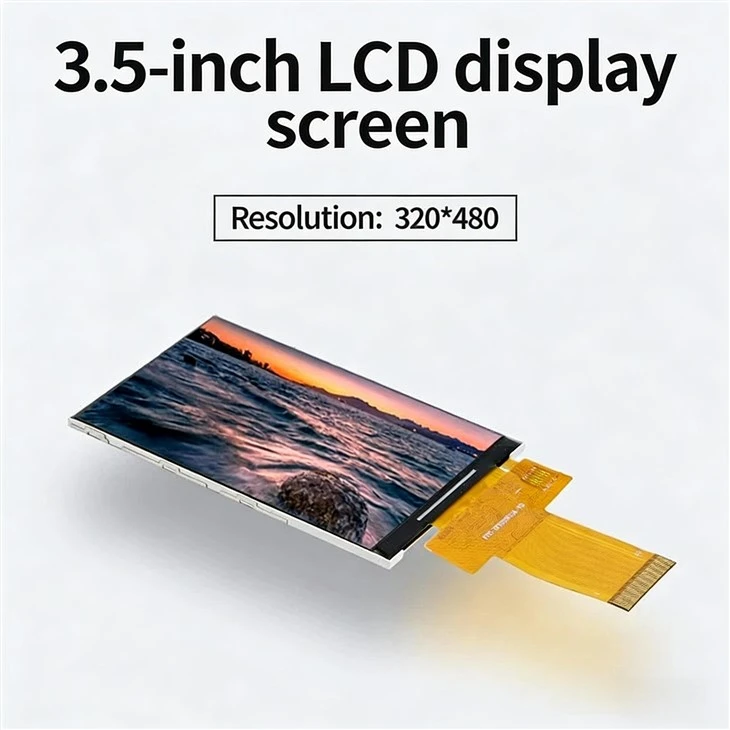

3.5 Inch Standard TFT
Resolution 320 × 480Screen Diagonal 3.5 InchInterface MCU / SPI / RGB
Technical Specifications
| Display Type | TFT Active Matrix LCD |
|---|---|
| Screen Diagonal | 3.5 Inch |
| Resolution | 320 × 480 |
| Panel Type | TN |
| Display Color | 262K / 16.7M |
| Backlight | White LED |
| Brightness | 300 ~ 400 cd/m² |
| Contrast Ratio | 300:1 |
| Response Time | 10ms |
| Viewing Angle | 60/50/55/50 |
| Interface | MCU / SPI / RGB |
| Input Voltage | 3.3V |
| Operating Temperature | -20°C ~ +70°C |
| Touch Panel | Optional |
| Compliance | RoHS, CE |

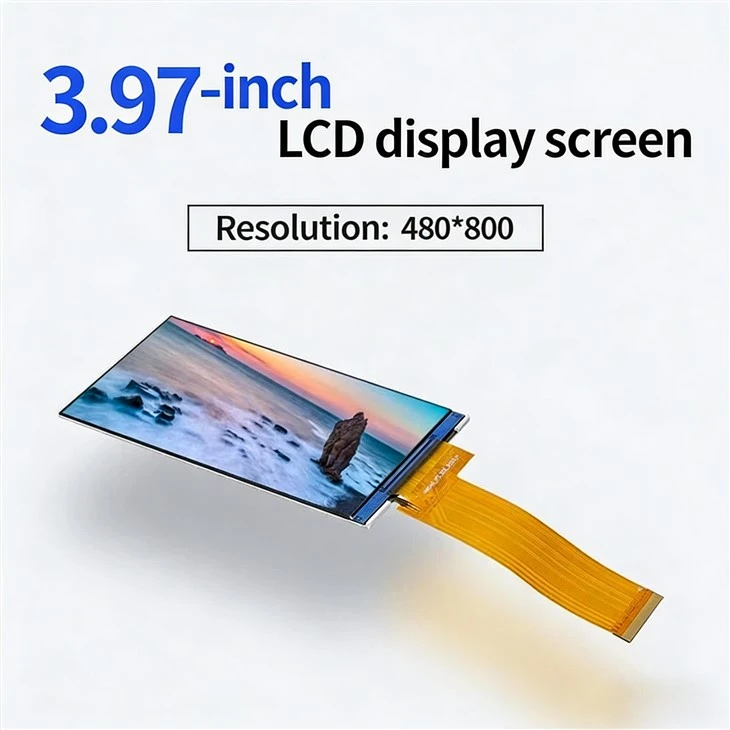

3.97 Inch Standard TFT
Resolution 480×800 PixelsDisplay Size 3.97 InchInterface MCU / RGB / SPI
Technical Specifications
| Display Size | 3.97 Inch |
|---|---|
| Resolution | 480×800 Pixels |
| Color Support | Up to 16.7 Million Colors |
| Panel Type | TN / IPS |
| Viewing Angle | 170°/170° |
| Brightness | 250 - 350 cd/m² |
| Driver IC | ILI9806 / NT35510 |
| Interface | MCU / RGB / SPI |
| Operating Temperature | -20℃ ~ 70℃ |
| Touch Function | Resistive / Capacitive |
| Environmental Standard | RoHS Compliant |

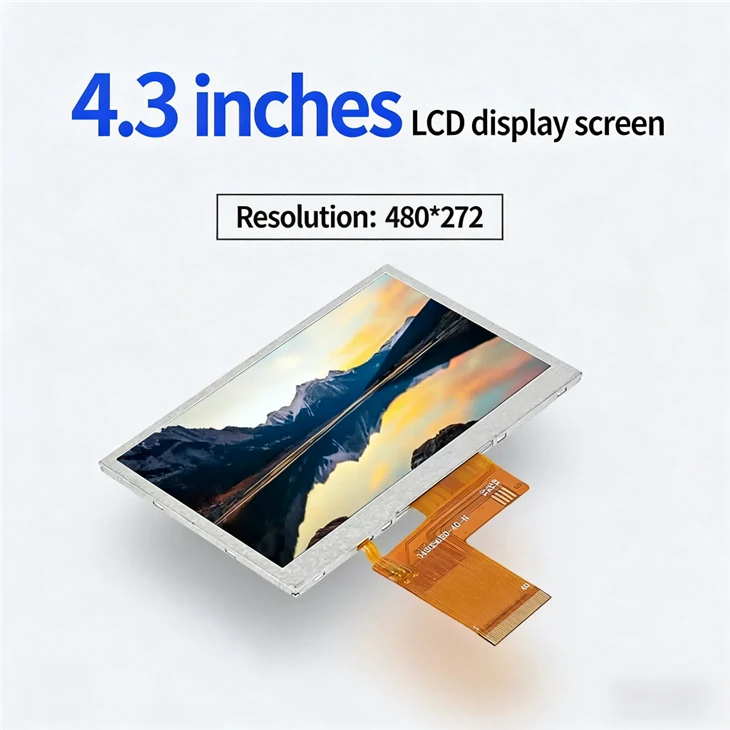

4.3 Inch Standard TFT
Resolution 480 x RGB x 272 (WQVGA) or 800 x 480 (WVGA)Display Size 4.3 inchInterface RGB 24-bit , optional LVDS/SPI/MCU
Technical Specifications
| Display Size | 4.3 inch |
|---|---|
| Resolution | 480 x RGB x 272 (WQVGA) or 800 x 480 (WVGA) |
| Display Type | Transmissive TFT LCD, normally white |
| Color Depth | 16.7M (24-bit) |
| Driver IC | ILI6480 / ST7282 / or customer specified |
| Interface | RGB 24-bit , optional LVDS/SPI/MCU |
| Module Dimension | Approx. 105.5 x 67.2 x 3.0 mm |
| Active Area | Approx. 95.04 x 53.86 mm (for 480x272) |
| Backlight Type | 6-10 LEDs , dimmable |
| Brightness | 300 cd/m² , up to 1000 cd/m² |
| Operating Voltage | 3.3V / 5V-12V |
| Operating Current | 50-80mA + 120-200mA |
| Operating Temperature | -20°C to +70°C (extendable to -30°C to +85°C) |
| Storage Temperature | -30°C to +80°C |
| Certifications | RoHS, REACH, CE |
5 Inch Standard TFT
Resolution 480×800 PixelsDisplay Size 5 InchInterface MCU / RGB / SPI
Technical Specifications
| Display Size | 5 Inch |
|---|---|
| Resolution | 480×800 Pixels |
| Color Support | Up to 16.7 Million Colors |
| Panel Type | TN / IPS |
| Viewing Angle | 170°/170° ; Standard Viewing Angle |
| Brightness | 250 - 350 cd/m² |
| Driver IC | ILI9806 / NT35510 |
| Interface | MCU / RGB / SPI |
| Operating Temperature | -20℃ ~ 70℃ |
| Touch Function | Resistive / Capacitive |
| Environmental Standard | RoHS Compliant |
7 Inch Standard TFT
Resolution 800×480 PixelsDisplay Size 7 InchInterface MCU / RGB / SPI
Technical Specifications
| Display Size | 7 Inch |
|---|---|
| Resolution | 800×480 Pixels |
| Color Support | Up to 16.7 Million Colors |
| Panel Type | TN / IPS |
| Viewing Angle | 170°/170° ; Standard Viewing Angle |
| Brightness | 300 - 400 cd/m² |
| Driver IC | ILI9488 / NT35510 |
| Interface | MCU / RGB / SPI |
| Operating Temperature | -20℃ ~ 70℃ |
| Touch Function | Resistive / Capacitive |
| Environmental Standard | RoHS Compliant |
10.1 Inch Standard TFT
Resolution 1024×600 PixelsDisplay Size 10.1 InchInterface MCU / RGB / SPI
Technical Specifications
| Display Size | 10.1 Inch |
|---|---|
| Resolution | 1024×600 Pixels |
| Color Support | Up to 16.7 Million Colors |
| Panel Type | TN / IPS |
| Viewing Angle | 170°/170° ; Standard Viewing Angle |
| Brightness | 350 - 450 cd/m² |
| Driver IC | ILI9488 / NT35510 / SSD1963 |
| Interface | MCU / RGB / SPI |
| Operating Temperature | -20℃ ~ 70℃ |
| Touch Function | Resistive / Capacitive (Optional) |
| Environmental Standard | RoHS Compliant |
LED Backlight Modules
4 modelsLED backlight modules replace or upgrade the light source behind an LCD. Edge-lit designs keep the module thin, bottom-lit designs give higher and more uniform brightness, hollow-cavity designs use reflective optics and an air gap to reach large sizes (7″ to 32″) without the weight and cost of a solid light guide, and front-light modules illuminate reflective displays from the viewing side.
Edge Lighting LED Backlight Modules
Resolution 128×160 to 1024×600Interface SPI / RGB / LVDS / MIPIBrightness 250 – 1000 cd/m²
Technical Specifications
| Display Type | TFT LCD |
|---|---|
| Backlight | Edge LED Backlight |
| Screen Diagonal | 1.8" – 10.1" |
| Resolution | 128×160 to 1024×600 |
| Brightness | 250 – 1000 cd/m² |
| Interface | SPI / RGB / LVDS / MIPI |
| Viewing Angle | IPS / TN optional |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Touch Panel | Optional (CTP/RTP) |
Bottom Lighting LED Backlight Modules
Display Size 7″ to 55″ (larger on request)Brightness 1500 – 5000+ nits
Technical Specifications
| Display Size | 7″ to 55″ (larger on request) |
|---|---|
| Brightness | 1500 – 5000+ nits |
| Uniformity | >90% (center to edge) |
| LED Configuration | Matrix array, custom pitch (10mm – 50mm) |
| Thickness | 10mm – 35mm (depends on mixing distance) |
| Lifetime | >80,000 hours @ 85% brightness |
| Input Voltage | 12V / 24V / 48V (custom) |
| Dimming | PWM / analog / local dimming zones |
Hollow Type LED Backlight Modules
Display Size 7″ to 32″ (custom shapes available)Brightness 1500 – 5000 nits (higher on request)
Technical Specifications
| Display Size | 7″ to 32″ (custom shapes available) |
|---|---|
| Brightness | 1500 – 5000 nits (higher on request) |
| Uniformity | >90% (center to edge) |
| LED Quantity | Custom array (direct-lit) |
| Thickness | 8mm – 25mm (depends on cavity depth) |
| Lifetime | >70,000 hours @ 85% brightness |
| Input Voltage | 12V / 24V / custom |
Front Light LED Backlight Modules
Resolution 128×160 to 1024×600Interface SPI / RGB / LVDS / MIPIBrightness 250 – 1000 cd/m²
Technical Specifications
| Display Type | TFT LCD |
|---|---|
| Backlight | Edge LED Backlight |
| Screen Diagonal | 1.8" – 10.1" |
| Resolution | 128×160 to 1024×600 |
| Brightness | 250 – 1000 cd/m² |
| Interface | SPI / RGB / LVDS / MIPI |
| Viewing Angle | IPS / TN optional |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Touch Panel | Optional (CTP/RTP) |
Custom Displays & Modules
6 modelsWhen a catalogue part does not fit, this family covers everything built to drawing: customized glass masks and resolutions, pen-segment LCD for fixed icons and annunciators, and fully bespoke LCM assemblies. Custom COG, COB, OLED and TFT builds are all available with customer-specified controller ICs, interfaces, mechanical outlines and cover-lens treatments.
Customizable Size
Technical Specifications
—
Any Size OLED Displays
Resolution From 64×32 to 256×128Screen Diagonal Any dimension from 0.6″ to 5.5″Interface I²C, 4-wire SPI, 8-bit parallel – we match your MCU
Technical Specifications
| Screen Diagonal | Any dimension from 0.6″ to 5.5″ |
|---|---|
| Resolution | From 64×32 to 256×128 |
| Display Type | PMOLED – monochrome or area color |
| Outline Dimension | Fully tailored to your enclosure drawing |
| Active Area Shape | Rectangular, square, circular, oval, or custom cutout |
| Color Options | White, yellow, blue, green, amber, sky blue – single color; area color |
| Brightness | 100 – 300 cd/m² |
| Contrast Ratio | >10,000:1 |
| Interface | I²C, 4-wire SPI, 8-bit parallel – we match your MCU |
| Logic Voltage | 3.0V or 5.0V |
| Operating Current | 10mA – 60mA |
| Sleep Mode Current | <1µA |
| Response Time | ≤10µs |
| Viewing Angle | Full >160° |
| Operating Temperature | -40℃ to +80℃ |
| Storage Temperature | -40℃ to +85℃ |
| Lifetime | >50,000 hours @ 120 cd/m², 25℃ |
| Connection | FPC |
| FPC Length | 20mm – 120mm |
| Cover Lens | Optional – anti-reflective or anti-shatter lamination |
| Certifications | RoHS, REACH, CE |
| Warranty | 12 months |

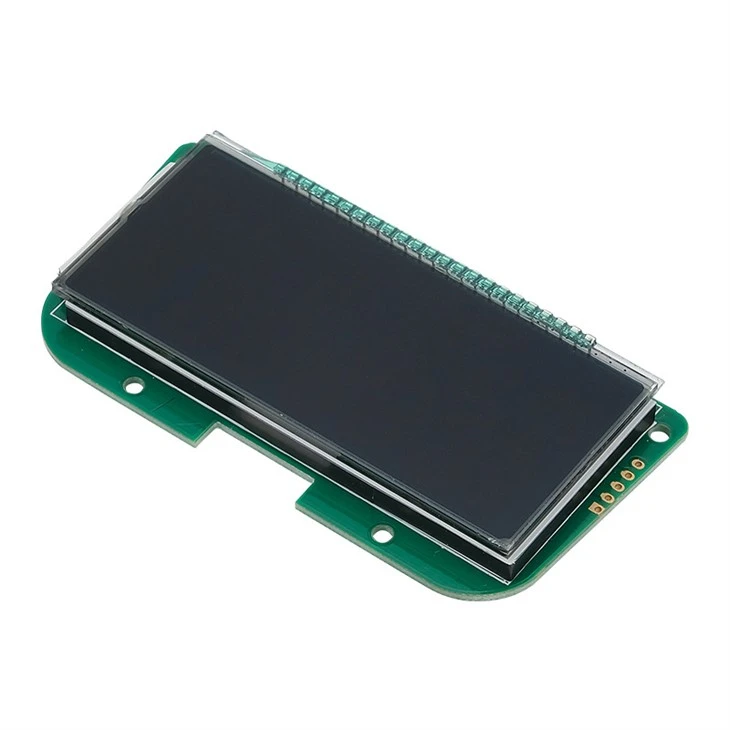

Customized Resolution COG LCD Displays
Resolution Any custom dot count, e.g., 64×32, 96×16, 100×32, 72×36, 84×24, 56×32 – you specify X × YInterface I²C , 4-wire SPI, 8-bit parallel – we match your MCUOperating Temperature -20℃ to +70℃ standard / -40℃ to +85℃ industrial
Technical Specifications
| Resolution | Any custom dot count, e.g., 64×32, 96×16, 100×32, 72×36, 84×24, 56×32 – you specify X × Y |
|---|---|
| Total Pixels | From 128 to 8,192 |
| Structure | COG – ultra-thin |
| Controller IC | SSD1305, SSD1309, SH1106, or customer-specified |
| Interface | I²C , 4-wire SPI, 8-bit parallel – we match your MCU |
| Logic Voltage | 2.8V – 5.5V 3.3V or 5V typical |
| Operating Current | 2mA – 10mA depending on resolution and pixel on-ratio |
| Sleep Mode Current | <1µA |
| Module Thickness | As low as 1.5mm glass-only |
| Outline Dimension | Fully tailored to your enclosure any shape |
| Active Area | Custom – we design glass mask to your exact viewing area |
| Dot Size & Pitch | Adjustable – optimized for your viewing distance |
| LCD Mode | STN Positive yellow-green or STN Negative blue – also FSTN, VA |
| Polarizer | Reflective, Transflective, or Transmissive |
| Backlight | Optional LED white, yellow-green, blue – custom color |
| Operating Temperature | -20℃ to +70℃ standard / -40℃ to +85℃ industrial |
| Connection | FPC (custom length, pinout, ZIF or hot-bar) |
| Certifications | RoHS, REACH, CE |
| Warranty | 12 months (extended available) |
Content-Customized Pen Segment LCD Displays
Operating Temperature -20℃ to +70℃ / -30℃ to +80℃
Technical Specifications
| LCD Type | Custom pen-segment |
|---|---|
| Backlight Type | LED edge-lit |
| Backlight Color | White, amber, green, blue, red, yellow, RGB – any Pantone matched |
| Backlight Brightness | 50 – 500 cd/m² |
| Cover Lens Material | Glass or acrylic |
| Cover Lens Thickness | 0.7mm – 2.0mm |
| Cover Lens Coatings | Anti-glare, anti-fingerprint, anti-shatter, hard coating |
| Cover Lens Printing | Logo, product name, decorative borders, icons |
| Lamination Method | Optical bonding or air gap |
| Total Module Thickness | 4mm – 8mm |
| Connection | FPC , pin headers, or cable harness |
| Mounting | Adhesive backing, screw holes, or snap-fit features on lens |
| Operating Temperature | -20℃ to +70℃ / -30℃ to +80℃ |
| Certifications | RoHS, REACH, CE |
Customized Non-Standard COB Modules
Technical Specifications
—

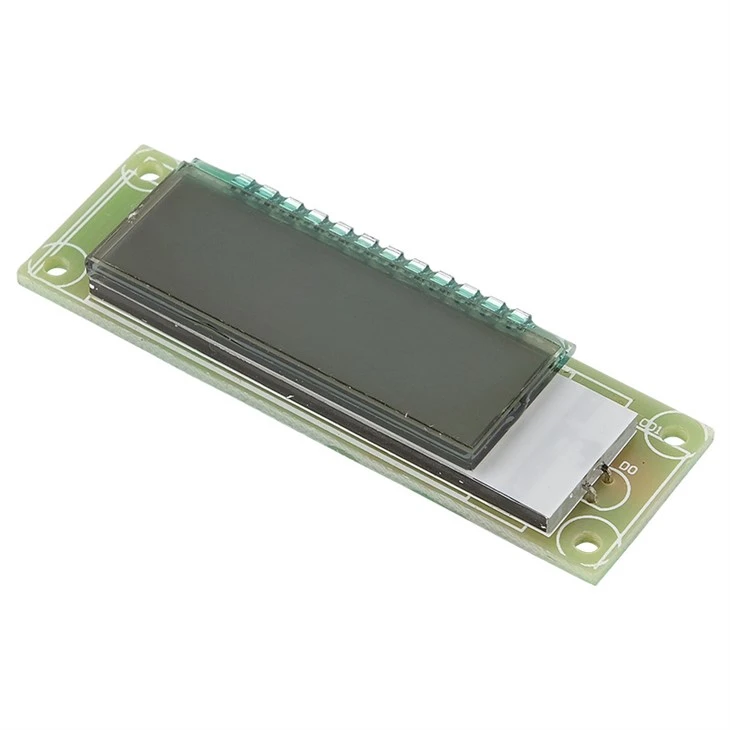

Customized Non-Standard LCM Modules
Technical Specifications
—
Frequently Asked Questions
Can the interface, voltage or pinout be changed?
Yes. Interface (parallel, SPI, I²C, RGB, LVDS, MIPI), logic voltage, viewing direction, FPC length and pinout are all configurable on standard models, and fully free on custom builds. Send us your schematic or the connector you already use.
Do you supply samples before mass production?
Standard models can be sampled directly. For customized glass, cover lens or LCM assemblies a drawing or sample confirmation is required before tooling, after which small batches ship quickly and volume production runs on a stable schedule.
Is touch available on the TFT range?
Resistive and capacitive touch panels can be laminated to the standard TFT modules on request. Touch is quoted together with the display so that the cover-lens thickness, optical bonding and FPC routing are designed as one stack.
How are the displays packed and shipped?
Modules ship in anti-static trays with protective film on the glass and the FPC secured. Packaging can be customised for automated SMT lines, and we can supply on reels or in trays to suit your assembly process.
