Viscosity Measurement Instruments

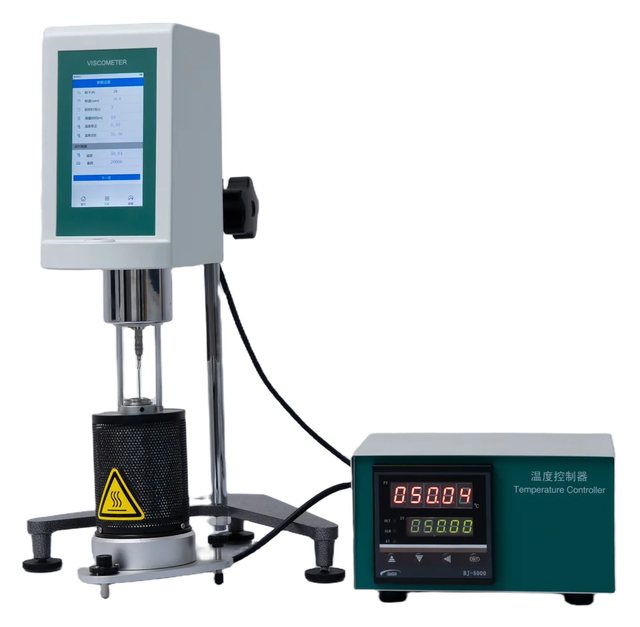

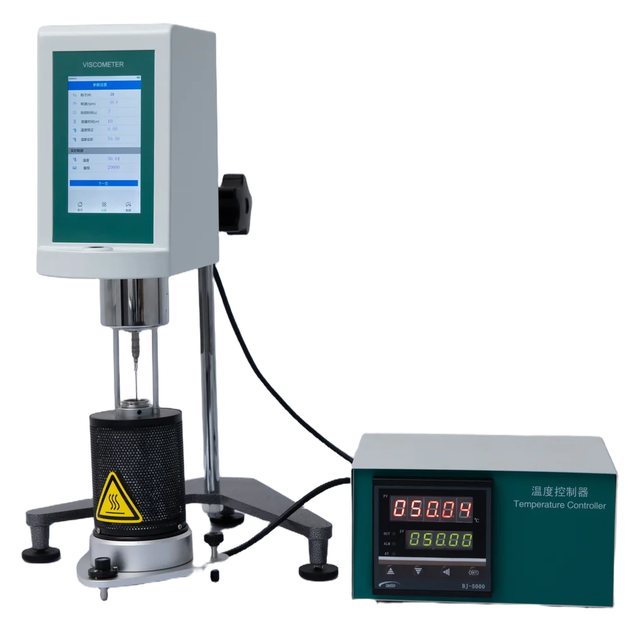

Which maximum temperature should I specify for the DV2TLV?

Confirm the operating limit of the supplied heater, cup and temperature-sensing arrangement as a complete configuration. Available high-temperature records contain revision differences; obtain a model-specific statement for the required sample temperature instead of relying on a series headline.

How much sample does the DV2TLV need?

The archived measuring-system description lists 15–25 mL. Confirm the fill volume for the selected spindle and heated cup, including the loading and immersion procedure, before using that figure in a test plan.

How should I select a DV2TLV spindle and speed?

The archived speed range is 0.1–200 rpm. Request the working-range table for the supplied spindle/cup geometry at the intended test temperature. The overall catalog range does not mean every spindle reaches both limits.

Can an ambient-temperature test procedure be transferred directly to the DV2TLV?

Review sample conditioning, contact materials, temperature measurement and reading time first. Confirm any method-specific requirements and obtain the supplied operating and cleaning instructions before testing heated samples.

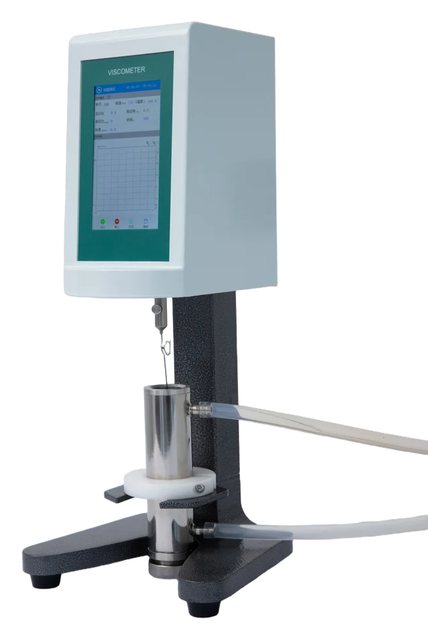

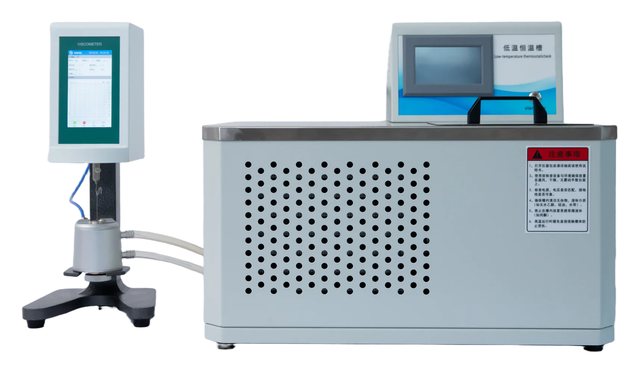

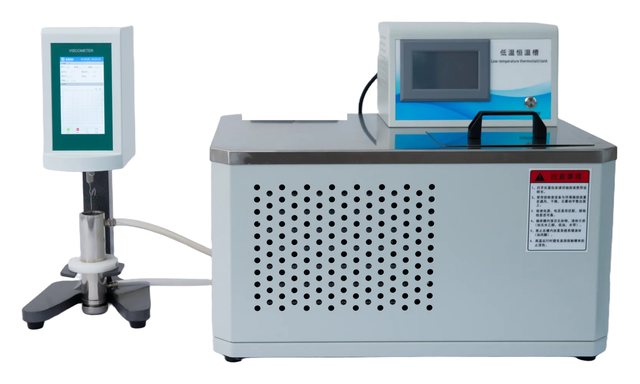

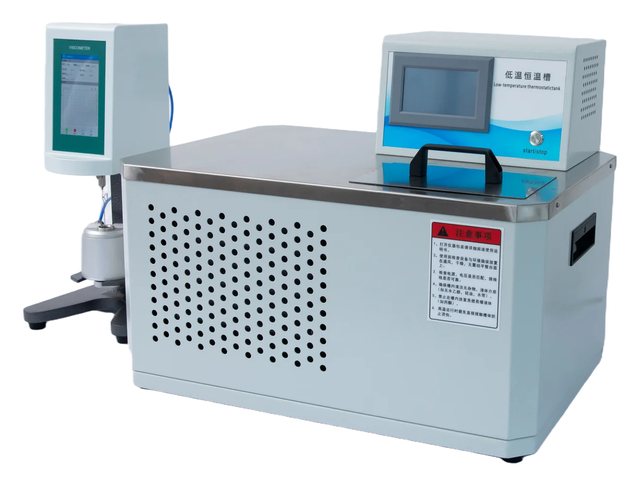

Which container and spindles does the DV79A use?

The listed configuration uses a Type A container, A, B, C and D spindles and 70 mL of sample. Keep the cup, spindle and fill requirement together when comparing or ordering configurations.

Can every DV79A spindle cover 1–50 mPa·s?

No. That catalog range spans several spindle/speed combinations. Request the table for the selected geometry and speed, and use readings within the catalog torque operating range of 10–100%.

Can DV79A temperature measurement replace a temperature-control setup?

The RTD probe measures sample temperature. It does not by itself establish heating or cooling capability. Specify the required test temperature and confirm how the selected cup will be conditioned and held at that temperature.

What should I confirm before recording DV79A results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

Which container and spindles does the DV79B use?

The listed configuration uses a Type B container, E, F and G spindles and 15 mL of sample. Keep the cup, spindle and fill requirement together when comparing or ordering configurations.

Can every DV79B spindle cover 10–1,000,000 mPa·s?

No. That catalog range spans several spindle/speed combinations. Request the table for the selected geometry and speed, and use readings within the catalog torque operating range of 10–100%.

Can DV79B temperature measurement replace a temperature-control setup?

The RTD probe measures sample temperature. It does not by itself establish heating or cooling capability. Specify the required test temperature and confirm how the selected cup will be conditioned and held at that temperature.

What should I confirm before recording DV79B results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

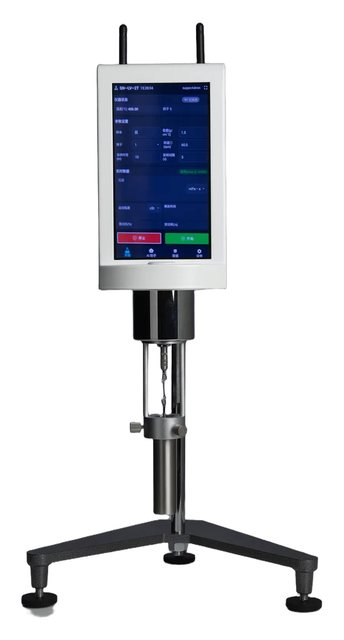

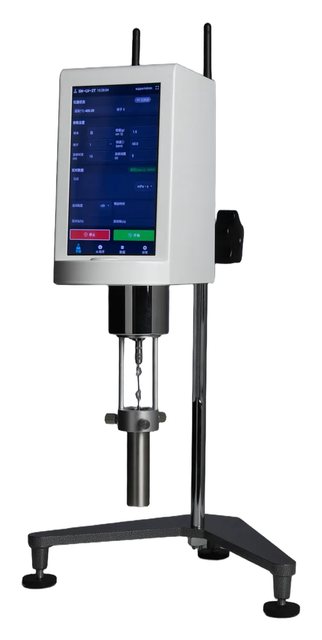

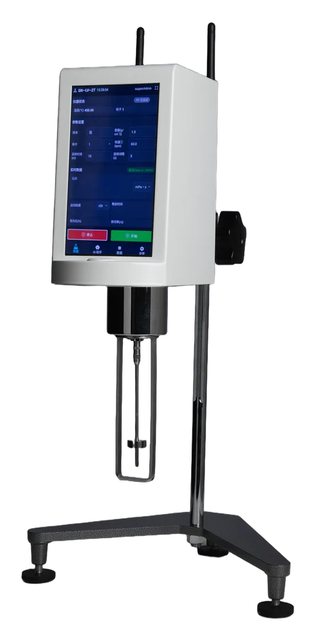

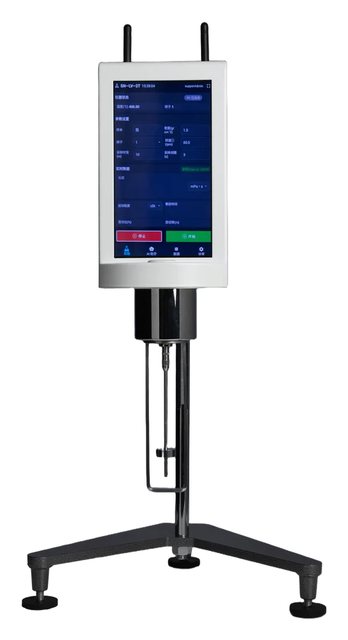

Does DVPlus+ HA include the base viscometer?

The catalog associates this package with HADV-1 and HADV-2. Ask whether the quotation covers a complete instrument, a compatible platform package or an upgrade, and identify the exact hardware revision. Do not assume universal compatibility from the family name.

Which reports can the DVPlus+ HA configuration provide?

The archived platform features include PDF reports and CSV audit logs. Confirm the installed software version, licence, available report fields and a sample export for the quoted package before relying on those formats in a workflow.

Does DVPlus+ HA change the viscosity range or accuracy?

The measurement range and accuracy must be specified for the actual base instrument, spindle and test conditions. A data platform or larger screen does not establish a new measuring range or an improved accuracy specification.

Are DVPlus+ HA network and multilingual features available in every package?

The platform catalog lists MQTT/HTTP connectivity and Chinese, English, Russian and Arabic interfaces. Confirm the installed options, network arrangement, update policy and supported languages for the supplied version; availability is configuration-specific.

Does DVPlus+ HB include the base viscometer?

The catalog associates this package with HBDV-1 and HBDV-2. Ask whether the quotation covers a complete instrument, a compatible platform package or an upgrade, and identify the exact hardware revision. Do not assume universal compatibility from the family name.

Which reports can the DVPlus+ HB configuration provide?

The archived platform features include PDF reports and CSV audit logs. Confirm the installed software version, licence, available report fields and a sample export for the quoted package before relying on those formats in a workflow.

Does DVPlus+ HB change the viscosity range or accuracy?

The measurement range and accuracy must be specified for the actual base instrument, spindle and test conditions. A data platform or larger screen does not establish a new measuring range or an improved accuracy specification.

Are DVPlus+ HB network and multilingual features available in every package?

The platform catalog lists MQTT/HTTP connectivity and Chinese, English, Russian and Arabic interfaces. Confirm the installed options, network arrangement, update policy and supported languages for the supplied version; availability is configuration-specific.

Does DVPlus+ LV include the base viscometer?

The catalog associates this package with LVDV-1 and LVDV-2. Ask whether the quotation covers a complete instrument, a compatible platform package or an upgrade, and identify the exact hardware revision. Do not assume universal compatibility from the family name.

Which reports can the DVPlus+ LV configuration provide?

The archived platform features include PDF reports and CSV audit logs. Confirm the installed software version, licence, available report fields and a sample export for the quoted package before relying on those formats in a workflow.

Does DVPlus+ LV change the viscosity range or accuracy?

The measurement range and accuracy must be specified for the actual base instrument, spindle and test conditions. A data platform or larger screen does not establish a new measuring range or an improved accuracy specification.

Are DVPlus+ LV network and multilingual features available in every package?

The platform catalog lists MQTT/HTTP connectivity and Chinese, English, Russian and Arabic interfaces. Confirm the installed options, network arrangement, update policy and supported languages for the supplied version; availability is configuration-specific.

Does DVPlus+ NDJ Series include the base viscometer?

The catalog associates this package with selected NDJ base instruments. Ask whether the quotation covers a complete instrument, a compatible platform package or an upgrade, and identify the exact hardware revision. Do not assume universal compatibility from the family name.

Which reports can the DVPlus+ NDJ Series configuration provide?

The archived platform features include PDF reports and CSV audit logs. Confirm the installed software version, licence, available report fields and a sample export for the quoted package before relying on those formats in a workflow.

Does DVPlus+ NDJ Series change the viscosity range or accuracy?

The measurement range and accuracy must be specified for the actual base instrument, spindle and test conditions. A data platform or larger screen does not establish a new measuring range or an improved accuracy specification.

Are DVPlus+ NDJ Series network and multilingual features available in every package?

The platform catalog lists MQTT/HTTP connectivity and Chinese, English, Russian and Arabic interfaces. Confirm the installed options, network arrangement, update policy and supported languages for the supplied version; availability is configuration-specific.

Does DVPlus+ RV include the base viscometer?

The catalog associates this package with RVDV-1 and RVDV-2. Ask whether the quotation covers a complete instrument, a compatible platform package or an upgrade, and identify the exact hardware revision. Do not assume universal compatibility from the family name.

Which reports can the DVPlus+ RV configuration provide?

The archived platform features include PDF reports and CSV audit logs. Confirm the installed software version, licence, available report fields and a sample export for the quoted package before relying on those formats in a workflow.

Does DVPlus+ RV change the viscosity range or accuracy?

The measurement range and accuracy must be specified for the actual base instrument, spindle and test conditions. A data platform or larger screen does not establish a new measuring range or an improved accuracy specification.

Are DVPlus+ RV network and multilingual features available in every package?

The platform catalog lists MQTT/HTTP connectivity and Chinese, English, Russian and Arabic interfaces. Confirm the installed options, network arrangement, update policy and supported languages for the supplied version; availability is configuration-specific.

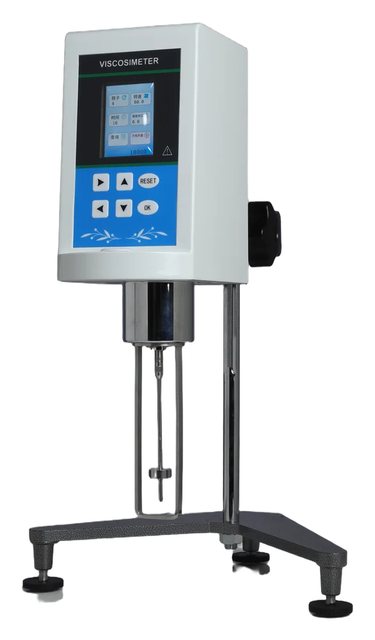

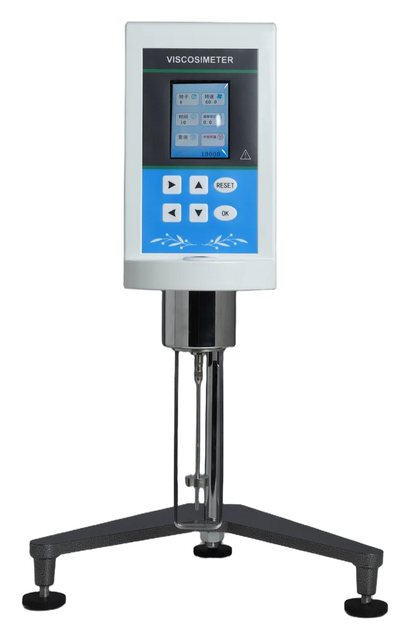

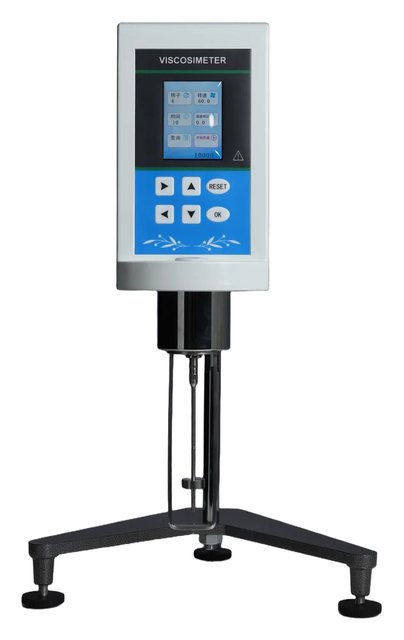

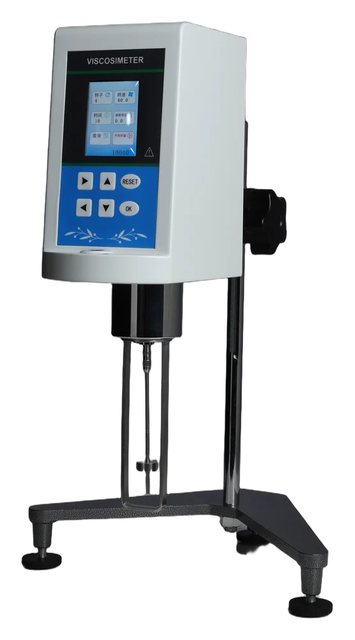

Does DVPlus+ SNB Series include the base viscometer?

The catalog associates this package with SNB-1, SNB-2 and SNB-3. Ask whether the quotation covers a complete instrument, a compatible platform package or an upgrade, and identify the exact hardware revision. Do not assume universal compatibility from the family name.

Which reports can the DVPlus+ SNB Series configuration provide?

The archived platform features include PDF reports and CSV audit logs. Confirm the installed software version, licence, available report fields and a sample export for the quoted package before relying on those formats in a workflow.

Does DVPlus+ SNB Series change the viscosity range or accuracy?

The measurement range and accuracy must be specified for the actual base instrument, spindle and test conditions. A data platform or larger screen does not establish a new measuring range or an improved accuracy specification.

Are DVPlus+ SNB Series network and multilingual features available in every package?

The platform catalog lists MQTT/HTTP connectivity and Chinese, English, Russian and Arabic interfaces. Confirm the installed options, network arrangement, update policy and supported languages for the supplied version; availability is configuration-specific.

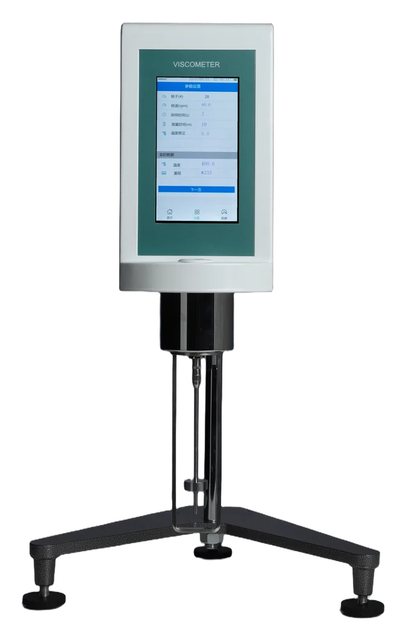

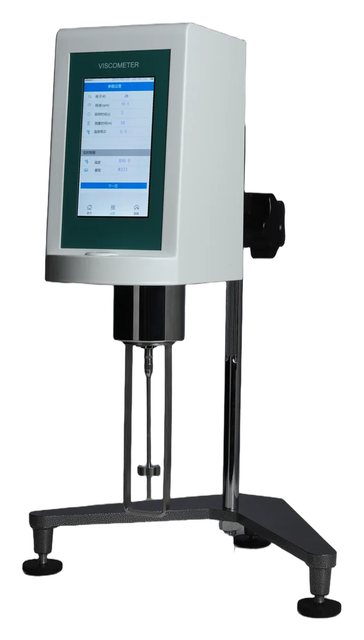

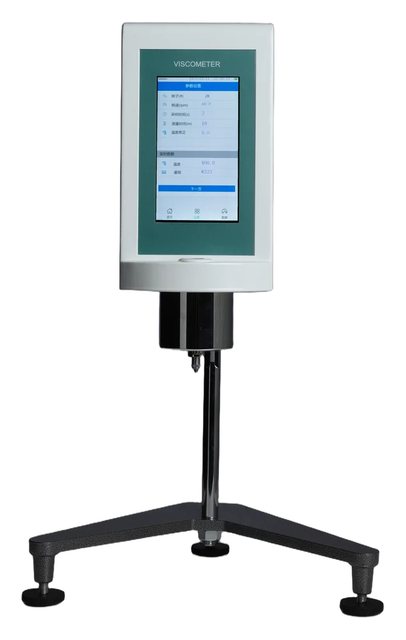

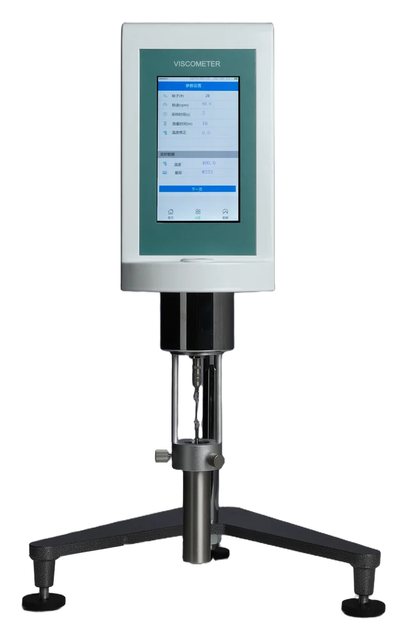

What does the HADV-1 maximum viscosity figure mean?

The agreed nominal catalog maximum is 26,000,000 mPa·s across spindle/speed combinations. It is not a full range specification for a single spindle. Confirm the lower limit and working-range table for the quoted spindle set and sample.

Which spindles are listed for the HADV-1?

R2–R7 are listed as standard, with R1 optional. Confirm the supplied set, matching sample container and immersion conditions. An optional spindle must be assessed as a specific configuration rather than added to every range claim.

Does the HADV-1 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording HADV-1 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What does the HADV-2 maximum viscosity figure mean?

The agreed nominal catalog maximum is 80,000,000 mPa·s across spindle/speed combinations. It is not a full range specification for a single spindle. Confirm the lower limit and working-range table for the quoted spindle set and sample.

Which spindles are listed for the HADV-2?

R2–R7 are listed as standard, with R1 optional. Confirm the supplied set, matching sample container and immersion conditions. An optional spindle must be assessed as a specific configuration rather than added to every range claim.

Does the HADV-2 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording HADV-2 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What does the HBDV-1 maximum viscosity figure mean?

The agreed nominal catalog maximum is 104,000,000 mPa·s across spindle/speed combinations. It is not a full range specification for a single spindle. Confirm the lower limit and working-range table for the quoted spindle set and sample.

Which spindles are listed for the HBDV-1?

R2–R7 are listed as standard, with R1 optional. Confirm the supplied set, matching sample container and immersion conditions. An optional spindle must be assessed as a specific configuration rather than added to every range claim.

Does the HBDV-1 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording HBDV-1 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What does the HBDV-2 maximum viscosity figure mean?

The agreed nominal catalog maximum is 320,000,000 mPa·s across spindle/speed combinations. It is not a full range specification for a single spindle. Confirm the lower limit and working-range table for the quoted spindle set and sample.

Which spindles are listed for the HBDV-2?

R2–R7 are listed as standard, with R1 optional. Confirm the supplied set, matching sample container and immersion conditions. An optional spindle must be assessed as a specific configuration rather than added to every range claim.

Does the HBDV-2 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording HBDV-2 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

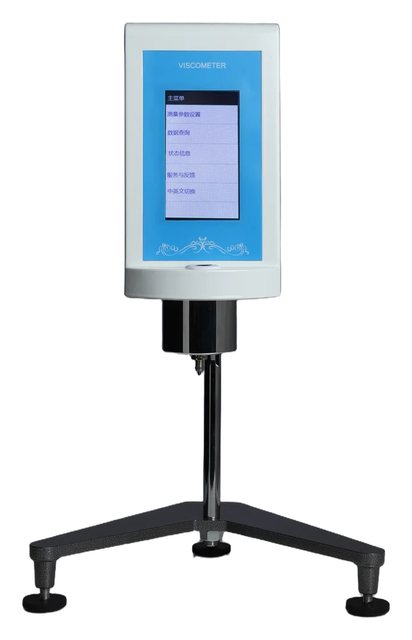

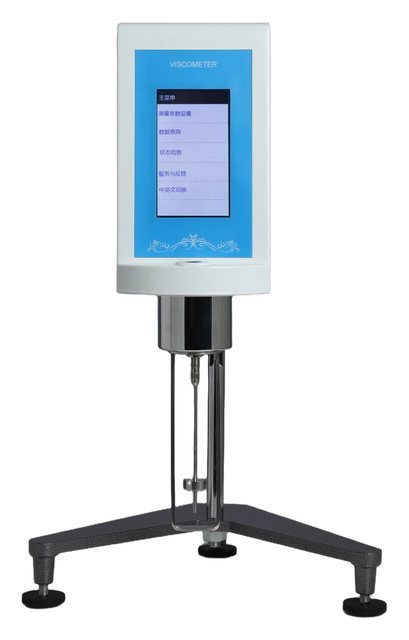

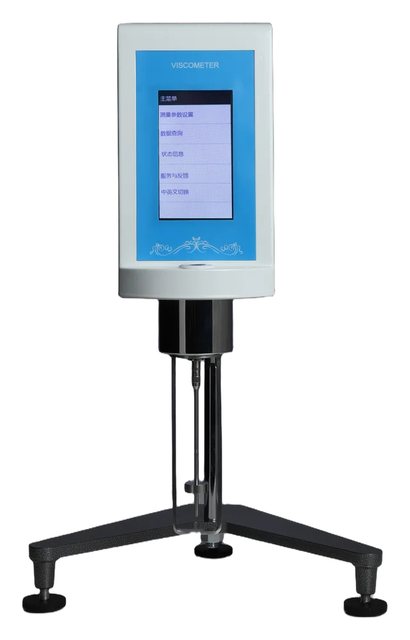

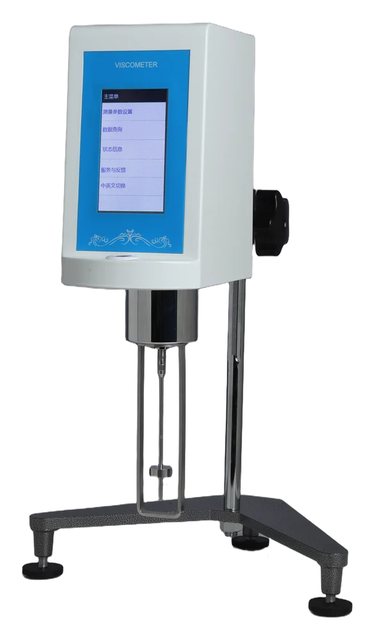

Does LV-SSA always use 10 mL?

No. The catalog lists 10–30 mL depending on the spindle and chamber. Ask for the fill specification of the selected SSA configuration; do not use the minimum figure for every spindle.

Which spindle system is listed for LV-SSA?

The archived list contains SSA spindle Nos. 18, 25, 31 and 34, with No. 0 described separately as an option. Confirm which spindle, chamber and connection parts are actually supplied.

Does the LV-SSA temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I compare before choosing LV-SSA?

Compare the required sample volume, spindle-specific range, operating speed, temperature equipment and cleaning procedure. Ask for the current configuration sheet before comparing an LV-SSA package with a different small-sample adapter.

What speed range is listed for the LVDV-1?

The catalog lists 0.3–100 rpm with stepless adjustment. Compare the speeds required by your method with the supplied revision and the usable range of each selected spindle.

Is the LVDV-1 small-sample configuration included?

The 25 mL configuration is described as an option. Ask for the adapter, chamber, matching spindle and fill-volume specification to be identified separately in the quotation.

Does the LVDV-1 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording LVDV-1 results on a computer?

The reviewed records list RS232 and a Bluetooth/app package for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What speed range is listed for the LVDV-2?

The catalog lists 0.1–200 rpm with stepless adjustment. Compare the speeds required by your method with the supplied revision and the usable range of each selected spindle.

Is the LVDV-2 small-sample configuration included?

The 25 mL configuration is described as an option. Ask for the adapter, chamber, matching spindle and fill-volume specification to be identified separately in the quotation.

Does the LVDV-2 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording LVDV-2 results on a computer?

The reviewed records list RS232 and a Bluetooth/app package for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

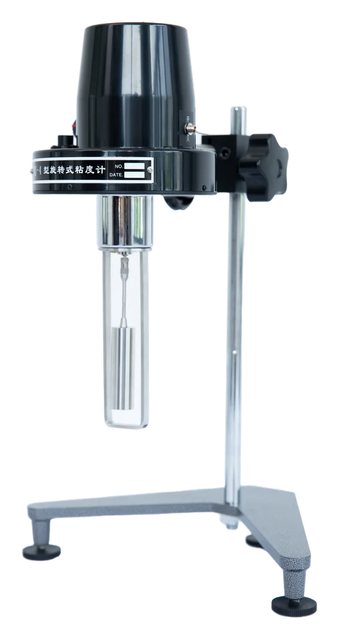

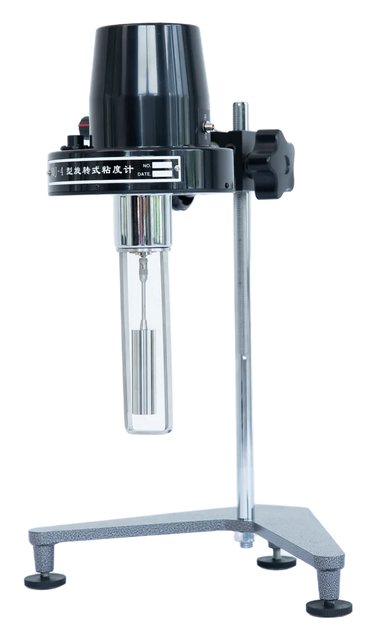

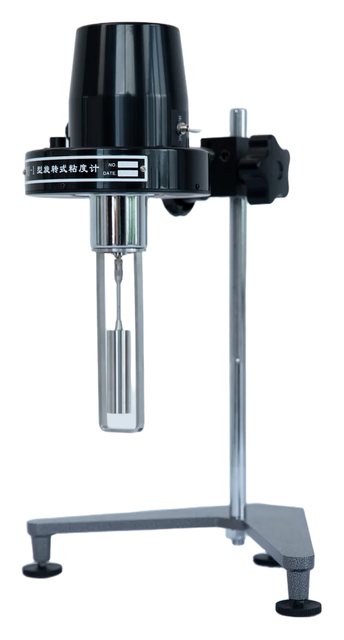

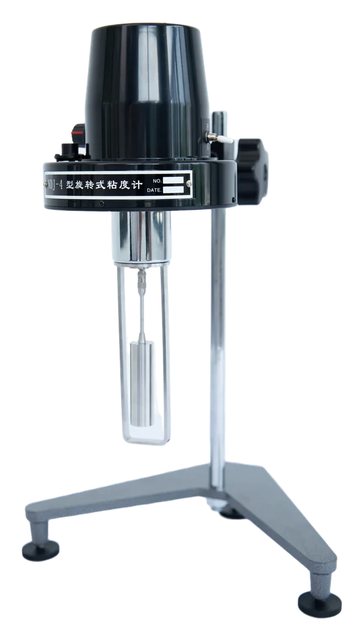

What is the standard range of the NDJ-1?

The listed standard range is 10–100,000 mPa·s across multiple spindle/speed combinations. Confirm the factor and working range for the particular combination used in the procedure.

Does the NDJ-1 standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

How should NDJ-1 dial readings be recorded?

Record the spindle, speed, applicable conversion factor, sample temperature and reading time with the result. Follow the supplied manual for reading and conversion rather than transferring factors from a different instrument.

What should be confirmed before replacing an existing unit with the NDJ-1?

Match the test method, spindle geometry, speed, container and temperature conditions. Request the revision-specific accuracy and repeatability; a familiar model name alone does not establish equivalent performance.

Which maximum temperature should I specify for the NDJ-1C-T?

Confirm the operating limit of the supplied heater, cup and temperature-sensing arrangement as a complete configuration. Available high-temperature records contain revision differences; obtain a model-specific statement for the required sample temperature instead of relying on a series headline.

How much sample does the NDJ-1C-T need?

The archived measuring-system description lists 15–25 mL. Confirm the fill volume for the selected spindle and heated cup, including the loading and immersion procedure, before using that figure in a test plan.

How should I select a NDJ-1C-T spindle and speed?

The archived speed range is 5–50 rpm. Request the working-range table for the supplied spindle/cup geometry at the intended test temperature. The overall catalog range does not mean every spindle reaches both limits.

Can an ambient-temperature test procedure be transferred directly to the NDJ-1C-T?

Review sample conditioning, contact materials, temperature measurement and reading time first. Confirm any method-specific requirements and obtain the supplied operating and cleaning instructions before testing heated samples.

Can the NDJ-1C test a 20 mL sample?

The model tables list 15–25 mL, so 20 mL is a configuration to check, not a universal fill instruction. Confirm the required volume for the exact spindle and cup before reserving or preparing the sample.

Which speed range is listed for the NDJ-1C?

The catalog lists 5–50 rpm with stepless control. Ask for the measuring range of each quoted spindle at the intended speed; different sample adapters and revisions can change the applicable range.

Does the NDJ-1C temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-1C results on a computer?

The reviewed records list RS232, Bluetooth and an app package for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

Which maximum temperature should I specify for the NDJ-1D-T?

Confirm the operating limit of the supplied heater, cup and temperature-sensing arrangement as a complete configuration. Available high-temperature records contain revision differences; obtain a model-specific statement for the required sample temperature instead of relying on a series headline.

How much sample does the NDJ-1D-T need?

The archived measuring-system description lists 15–25 mL. Confirm the fill volume for the selected spindle and heated cup, including the loading and immersion procedure, before using that figure in a test plan.

How should I select a NDJ-1D-T spindle and speed?

The archived speed range is 0.5–100 rpm. Request the working-range table for the supplied spindle/cup geometry at the intended test temperature. The overall catalog range does not mean every spindle reaches both limits.

Can an ambient-temperature test procedure be transferred directly to the NDJ-1D-T?

Review sample conditioning, contact materials, temperature measurement and reading time first. Confirm any method-specific requirements and obtain the supplied operating and cleaning instructions before testing heated samples.

Can the NDJ-1D test a 20 mL sample?

The model tables list 15–25 mL, so 20 mL is a configuration to check, not a universal fill instruction. Confirm the required volume for the exact spindle and cup before reserving or preparing the sample.

Which speed range is listed for the NDJ-1D?

The catalog lists 0.5–100 rpm with stepless control. Ask for the measuring range of each quoted spindle at the intended speed; different sample adapters and revisions can change the applicable range.

Does the NDJ-1D temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-1D results on a computer?

The reviewed records list RS232, Bluetooth and an app package for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

Are all NDJ-1E+ specifications confirmed?

A current independent model-specific source has not yet been matched for this entry. Confirm the supplied revision and complete measuring specifications before incorporating catalog values into a purchase or acceptance requirement.

Can I use a related model’s specifications for NDJ-1E+?

No. Similar names or shared series photographs do not establish the same measuring system, display, accuracy or software. Request written configuration details for the exact model being quoted.

What documents should accompany an enquiry for NDJ-1E+?

Request a current datasheet, supplied spindle or measuring-system list, operating instructions, power specification and available inspection/calibration documents. State the sample, temperature, required method and reporting needs.

How should I assess alternatives to the NDJ-1E+?

Compare the actual method, sample arrangement, measuring range, temperature conditions and recording requirements. Use the linked models to begin a configuration discussion; establish compatibility rather than assuming a drop-in replacement.

Which speed settings does the NDJ-1E offer?

The catalog lists 0.1–120 rpm with stepless control. Select a speed supported by the sample procedure and confirm the usable viscosity range of the chosen spindle at that speed.

Does the NDJ-1E standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-1E temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-1E results on a computer?

The reviewed records list RS232, Bluetooth and an app package for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

Which maximum temperature should I specify for the NDJ-1F-T?

Confirm the operating limit of the supplied heater, cup and temperature-sensing arrangement as a complete configuration. Available high-temperature records contain revision differences; obtain a model-specific statement for the required sample temperature instead of relying on a series headline.

How much sample does the NDJ-1F-T need?

The archived measuring-system description lists 15–25 mL. Confirm the fill volume for the selected spindle and heated cup, including the loading and immersion procedure, before using that figure in a test plan.

How should I select a NDJ-1F-T spindle and speed?

The archived speed range is 0.1–100 rpm. Request the working-range table for the supplied spindle/cup geometry at the intended test temperature. The overall catalog range does not mean every spindle reaches both limits.

Can an ambient-temperature test procedure be transferred directly to the NDJ-1F-T?

Review sample conditioning, contact materials, temperature measurement and reading time first. Confirm any method-specific requirements and obtain the supplied operating and cleaning instructions before testing heated samples.

Can the NDJ-1F test a 20 mL sample?

The model tables list 15–25 mL, so 20 mL is a configuration to check, not a universal fill instruction. Confirm the required volume for the exact spindle and cup before reserving or preparing the sample.

Which speed range is listed for the NDJ-1F?

The catalog lists 0.1–100 rpm with stepless control. Ask for the measuring range of each quoted spindle at the intended speed; different sample adapters and revisions can change the applicable range.

Does the NDJ-1F temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-1F results on a computer?

The reviewed records list RS232, Bluetooth and an app package for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What is the standard range of the NDJ-4?

The listed standard range is 10–2,000,000 mPa·s across multiple spindle/speed combinations. Confirm the factor and working range for the particular combination used in the procedure.

Does the NDJ-4 standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

How should NDJ-4 dial readings be recorded?

Record the spindle, speed, applicable conversion factor, sample temperature and reading time with the result. Follow the supplied manual for reading and conversion rather than transferring factors from a different instrument.

What should be confirmed before replacing an existing unit with the NDJ-4?

Match the test method, spindle geometry, speed, container and temperature conditions. Request the revision-specific accuracy and repeatability; a familiar model name alone does not establish equivalent performance.

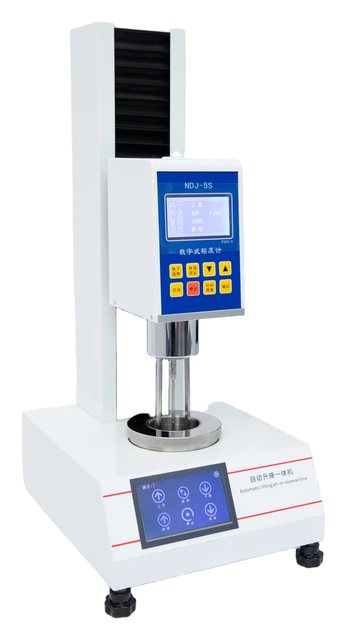

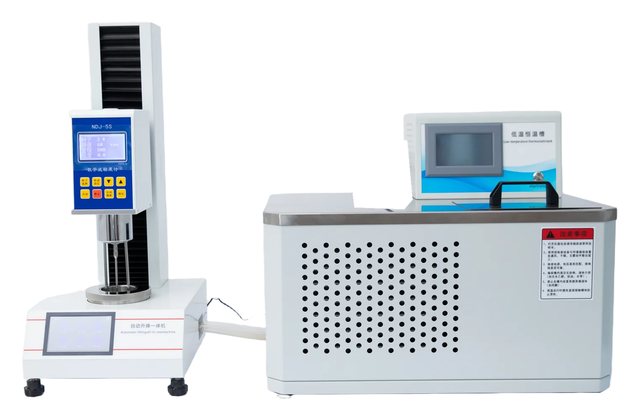

What is integrated into the NDJ-5S-MAX?

The archived configuration describes a stainless-steel circulating test cup and automatic lift. Ask for the supplied assembly drawing or photographs, cup dimensions and included connection parts to confirm the delivered arrangement.

Does the NDJ-5S-MAX include a heating or cooling bath?

The circulating cup is not proof of an included bath. Request a quotation that separates the instrument, temperature probe, circulation hoses and suitable temperature-control equipment.

Does the NDJ-5S-MAX standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Which speeds should I confirm for the NDJ-5S-MAX?

The archived list is 6, 12, 30 and 60 rpm. Confirm those settings for the supplied revision and identify the spindle/cup combination used for the required test.

Which speeds are listed for the NDJ-5S?

The catalog settings are 6, 12, 30 and 60 rpm. Choose a spindle/speed combination that places the sample within its usable measuring range; do not assume every speed covers the full catalog range.

Does the NDJ-5S standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-5S temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should be checked when accepting the NDJ-5S?

Ask for the supplied spindle list, revision-specific accuracy and repeatability, and the power-adapter label. Where dimensions or weight exclude the stand, obtain the complete assembled and packed dimensions separately.

How should I specify the NDJ-5SE speed range?

The listed range is 6–60 rpm. Confirm that the quoted revision supports the speeds required by your procedure; usable viscosity also depends on the spindle.

Does the NDJ-5SE standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-5SE temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-5SE results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

Which speed settings does the NDJ-5T offer?

The catalog lists 6–60 rpm with stepless control. Select a speed supported by the sample procedure and confirm the usable viscosity range of the chosen spindle at that speed.

Does the NDJ-5T standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-5T temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-5T results on a computer?

The reviewed records list RS232, Bluetooth and an app package for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What is integrated into the NDJ-8S-MAX?

The archived configuration describes a stainless-steel circulating test cup and automatic lift. Ask for the supplied assembly drawing or photographs, cup dimensions and included connection parts to confirm the delivered arrangement.

Does the NDJ-8S-MAX include a heating or cooling bath?

The circulating cup is not proof of an included bath. Request a quotation that separates the instrument, temperature probe, circulation hoses and suitable temperature-control equipment.

Does the NDJ-8S-MAX standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Which speeds should I confirm for the NDJ-8S-MAX?

The archived list is 0.3, 0.6, 1.5, 3, 6, 12, 30 and 60 rpm. Confirm those settings for the supplied revision and identify the spindle/cup combination used for the required test.

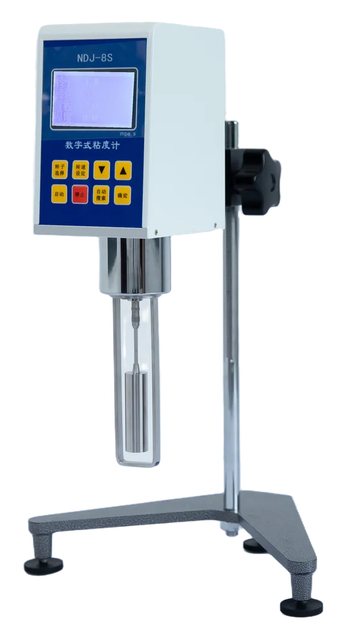

Which speeds are listed for the NDJ-8S?

The catalog settings are 0.3, 0.6, 1.5, 3, 6, 12, 30 and 60 rpm. Choose a spindle/speed combination that places the sample within its usable measuring range; do not assume every speed covers the full catalog range.

Does the NDJ-8S standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-8S temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should be checked when accepting the NDJ-8S?

Ask for the supplied spindle list, revision-specific accuracy and repeatability, and the power-adapter label. Where dimensions or weight exclude the stand, obtain the complete assembled and packed dimensions separately.

How should I specify the NDJ-8SE speed range?

The listed range is 0.3–60 rpm. Confirm that the quoted revision supports the speeds required by your procedure; usable viscosity also depends on the spindle.

Does the NDJ-8SE standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-8SE temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-8SE results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

Which speed settings does the NDJ-8T offer?

The catalog lists 0.3–60 rpm with stepless control. Select a speed supported by the sample procedure and confirm the usable viscosity range of the chosen spindle at that speed.

Does the NDJ-8T standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-8T temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-8T results on a computer?

The reviewed records list RS232, Bluetooth and an app package for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What is integrated into the NDJ-9S-MAX?

The archived configuration describes a stainless-steel circulating test cup and automatic lift. Ask for the supplied assembly drawing or photographs, cup dimensions and included connection parts to confirm the delivered arrangement.

Does the NDJ-9S-MAX include a heating or cooling bath?

The circulating cup is not proof of an included bath. Request a quotation that separates the instrument, temperature probe, circulation hoses and suitable temperature-control equipment.

Does the NDJ-9S-MAX standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Which speeds should I confirm for the NDJ-9S-MAX?

The archived list is 0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30 and 60 rpm. Confirm those settings for the supplied revision and identify the spindle/cup combination used for the required test.

Which speeds are listed for the NDJ-9S?

The catalog settings are 0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30 and 60 rpm. Choose a spindle/speed combination that places the sample within its usable measuring range; do not assume every speed covers the full catalog range.

Does the NDJ-9S standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-9S temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should be checked when accepting the NDJ-9S?

Ask for the supplied spindle list, revision-specific accuracy and repeatability, and the power-adapter label. Where dimensions or weight exclude the stand, obtain the complete assembled and packed dimensions separately.

How should I specify the NDJ-9SE speed range?

The available records differ on the upper speed limit. Obtain the exact speed range for the quoted NDJ-9SE revision before using its maximum speed in a test method or purchase specification.

Does the NDJ-9SE standard spindle set cover the lowest listed viscosity?

The lowest catalog values may require the optional No. 0 spindle or matching low-viscosity adapter. Quote the spindle and container together, and confirm the usable range at the required speed; the overall instrument range is not the range of every spindle.

Does the NDJ-9SE temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording NDJ-9SE results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What does the RVDV-1 maximum viscosity figure mean?

The agreed nominal catalog maximum is 13,000,000 mPa·s across spindle/speed combinations. It is not a full range specification for a single spindle. Confirm the lower limit and working-range table for the quoted spindle set and sample.

Which spindles are listed for the RVDV-1?

R2–R7 are listed as standard, with R1 optional. Confirm the supplied set, matching sample container and immersion conditions. An optional spindle must be assessed as a specific configuration rather than added to every range claim.

Does the RVDV-1 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording RVDV-1 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What does the RVDV-2 maximum viscosity figure mean?

The agreed nominal catalog maximum is 40,000,000 mPa·s across spindle/speed combinations. It is not a full range specification for a single spindle. Confirm the lower limit and working-range table for the quoted spindle set and sample.

Which spindles are listed for the RVDV-2?

R2–R7 are listed as standard, with R1 optional. Confirm the supplied set, matching sample container and immersion conditions. An optional spindle must be assessed as a specific configuration rather than added to every range claim.

Does the RVDV-2 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording RVDV-2 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What range does the SNB-1 standard configuration cover?

The reviewed catalog lists 10–100,000 mPa·s with Nos. 1–4 spindles. Each spindle/speed combination covers part of that range. The optional No. 0 configuration is required for the lowest values shown in the overall catalog range.

How should I compare the SNB-1 with other SNB models?

Compare the usable range of the required spindle, the available speeds and the supplied temperature/PC accessories. SNB-3 records differ on the number of speed settings, so ask for the actual revision list rather than assuming all SNB versions share the same settings.

Does the SNB-1 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording SNB-1 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What range does the SNB-2 standard configuration cover?

The reviewed catalog lists 10–2,000,000 mPa·s with Nos. 1–4 spindles. Each spindle/speed combination covers part of that range. The optional No. 0 configuration is required for the lowest values shown in the overall catalog range.

How should I compare the SNB-2 with other SNB models?

Compare the usable range of the required spindle, the available speeds and the supplied temperature/PC accessories. SNB-3 records differ on the number of speed settings, so ask for the actual revision list rather than assuming all SNB versions share the same settings.

Does the SNB-2 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording SNB-2 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

What range does the SNB-3 standard configuration cover?

The reviewed catalog lists 10–6,000,000 mPa·s with Nos. 1–4 spindles. Each spindle/speed combination covers part of that range. The optional No. 0 configuration is required for the lowest values shown in the overall catalog range.

How should I compare the SNB-3 with other SNB models?

Compare the usable range of the required spindle, the available speeds and the supplied temperature/PC accessories. SNB-3 records differ on the number of speed settings, so ask for the actual revision list rather than assuming all SNB versions share the same settings.

Does the SNB-3 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

What should I confirm before recording SNB-3 results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

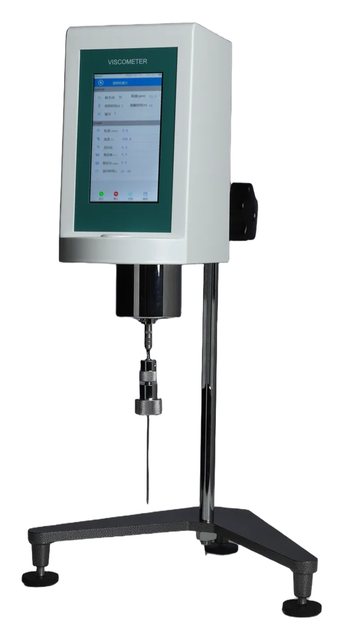

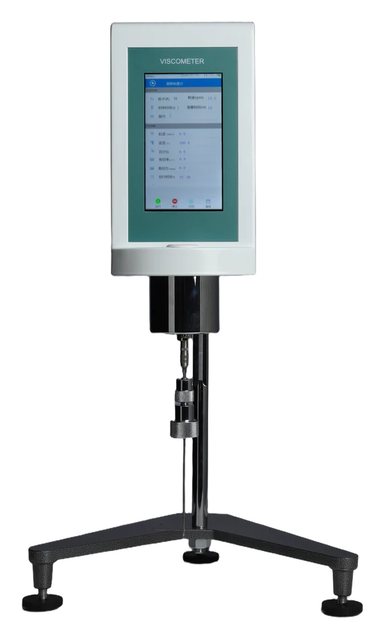

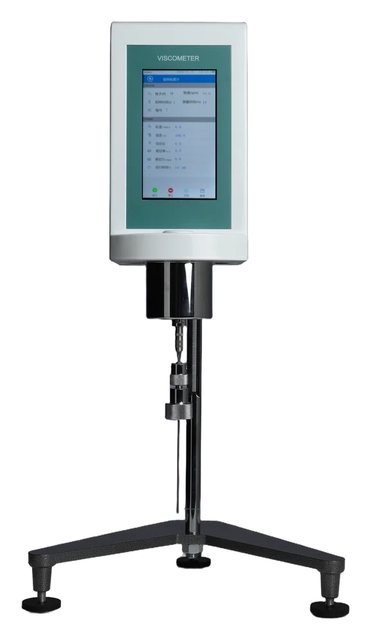

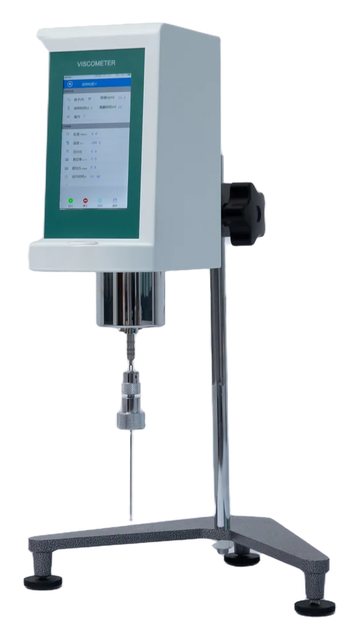

Which spindles and speeds are listed for the T-bar configuration?

The catalog lists TA, TB, TC, TD, TE and TF spindles with 0.1–200 rpm speed control. Request the working-range information for the selected spindle and complete motion setup.

Is a lifting mechanism automatically included with the T-bar spindle set?

Do not infer the supplied lifting mechanism from the spindle names. Confirm the stand, drive, motion control, travel and sample-container requirements as an itemised configuration.

Can T-bar results be compared directly with standard-spindle results?

A different geometry or motion changes the test conditions. Use a defined procedure and establish comparability for the sample before substituting one configuration for another.

What should I confirm before recording T-bar results on a computer?

The reviewed records list RS232 for this configuration. Ask for the exact interface, cable, supported computer environment, software licence and export format. A listed connection does not establish that every software function is included.

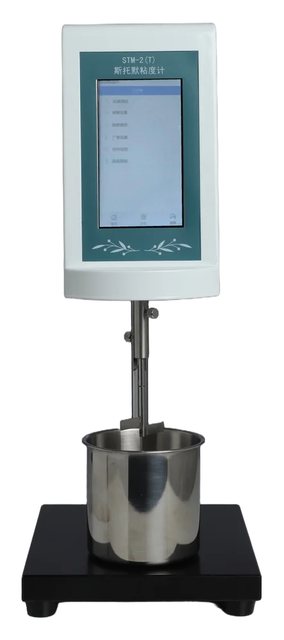

When should I consider the STM-2?

Consider this instrument when the paint or coating procedure calls for a Stormer/Krebs measurement in KU. Match the required method, sample preparation and temperature; a KU measurement is not automatically interchangeable with a different rotational-viscometer procedure.

Does the STM-2 require 500 mL of sample?

The 500 mL figure is the container capacity, not an instruction to add 500 mL. Follow the supplied filling procedure and align the spindle immersion mark with the sample surface. Request the required fill quantity for the actual container.

Does the STM-2 temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

Can the STM-2 export results to a computer?

Do not assume the STM-2T data package is included with STM-2. The model table does not list that package as included for STM-2, while shared series text mentions a serial port. Confirm the physical interface, software and export format in the quotation.

Is the listed STM-2 power supply suitable for 60 Hz?

The reviewed input specification is 220 V, 50 Hz. It does not establish 60 Hz compatibility. State the destination voltage, frequency and plug requirement before ordering.

When should I consider the STM-2T?

Consider this instrument when the paint or coating procedure calls for a Stormer/Krebs measurement in KU. Match the required method, sample preparation and temperature; a KU measurement is not automatically interchangeable with a different rotational-viscometer procedure.

Does the STM-2T require 500 mL of sample?

The 500 mL figure is the container capacity, not an instruction to add 500 mL. Follow the supplied filling procedure and align the spindle immersion mark with the sample surface. Request the required fill quantity for the actual container.

Does the STM-2T temperature probe control the sample temperature?

A temperature probe measures temperature; it does not by itself heat or cool the sample. Confirm the probe supplied with the instrument and the separate bath, cup or conditioning equipment required by the test method.

Can the STM-2T export results to a computer?

An RS232/software package is listed for STM-2T. Confirm the physical interface, software licence, supported computer environment and export format in the quotation. The 40-group onboard memory alone does not specify export functions.

Is the listed STM-2T power supply suitable for 60 Hz?

The reviewed input specification is 220 V, 50 Hz. It does not establish 60 Hz compatibility. State the destination voltage, frequency and plug requirement before ordering.

Are all STM-IV specifications confirmed?

A current independent model-specific source has not yet been matched for this entry. Confirm the supplied revision and complete measuring specifications before incorporating catalog values into a purchase or acceptance requirement.

Can I use a related model’s specifications for STM-IV?

No. Similar names or shared series photographs do not establish the same measuring system, display, accuracy or software. Request written configuration details for the exact model being quoted.

What documents should accompany an enquiry for STM-IV?

Request a current datasheet, supplied spindle or measuring-system list, operating instructions, power specification and available inspection/calibration documents. State the sample, temperature, required method and reporting needs.

How should I assess alternatives to the STM-IV?

Compare the actual method, sample arrangement, measuring range, temperature conditions and recording requirements. Use the linked models to begin a configuration discussion; establish compatibility rather than assuming a drop-in replacement.

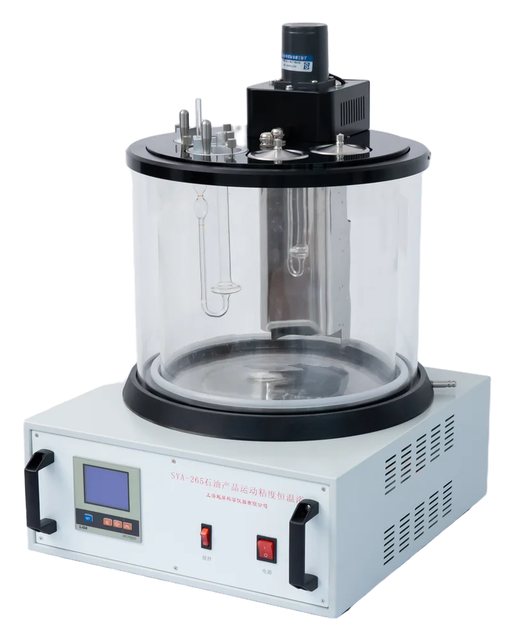

What does the SYA-265C measure?

It measures kinematic viscosity from capillary flow under controlled temperature, with results in mm²/s. This is a different measurement arrangement from a rotational viscometer; choose the instrument according to the required method and reporting unit.

Which capillaries are included with the SYA-265C?

The reviewed catalog lists eight capillaries. Bore sizes, usable ranges, individual calibration constants and accompanying certificates must be confirmed for the supplied set; the number alone is not a complete measuring-range specification.

Can the SYA-265C be specified for tests at 40 °C and 100 °C?

The listed bath range extends from room temperature to 100 °C. Temperature-range coverage alone does not establish compliance with a particular test standard. Confirm the required bath stability, uniformity, capillary and flow-time conditions at both setpoints.

Is the SYA-265C a fully automatic system?

The available specifications do not establish a fully automatic workflow. Request a demonstration or operating sequence covering sample loading, equilibration, flow timing, calculation and cleaning before assigning operator time or throughput.

What does the SYA-265D measure?

It measures kinematic viscosity from capillary flow under controlled temperature, with results in mm²/s. This is a different measurement arrangement from a rotational viscometer; choose the instrument according to the required method and reporting unit.

Which capillaries are included with the SYA-265D?

The reviewed catalog lists eight capillaries. Bore sizes, usable ranges, individual calibration constants and accompanying certificates must be confirmed for the supplied set; the number alone is not a complete measuring-range specification.

Can the SYA-265D be specified for tests at 40 °C and 100 °C?

The listed bath range extends from room temperature to 100 °C. Temperature-range coverage alone does not establish compliance with a particular test standard. Confirm the required bath stability, uniformity, capillary and flow-time conditions at both setpoints.

Is the SYA-265D a fully automatic system?

The available specifications do not establish a fully automatic workflow. Request a demonstration or operating sequence covering sample loading, equilibration, flow timing, calculation and cleaning before assigning operator time or throughput.

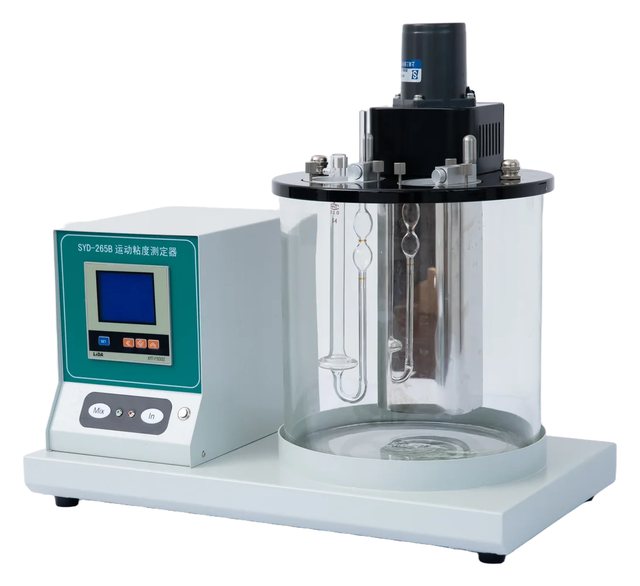

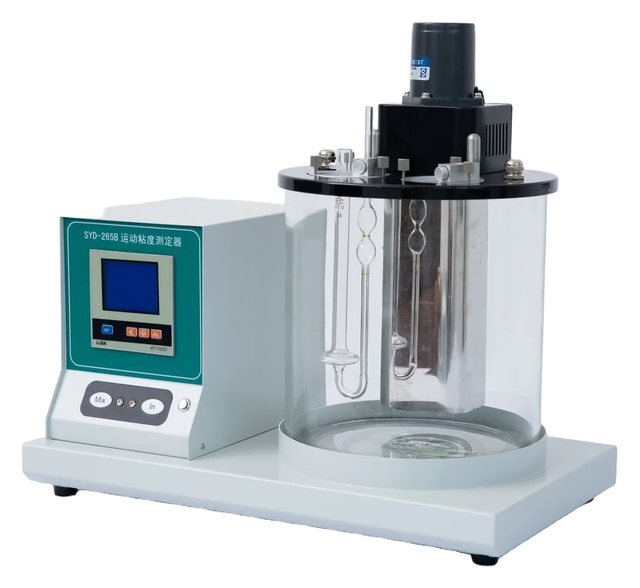

What does the SYD-265B measure?

It measures kinematic viscosity from capillary flow under controlled temperature, with results in mm²/s. This is a different measurement arrangement from a rotational viscometer; choose the instrument according to the required method and reporting unit.

Which capillaries are included with the SYD-265B?

The reviewed catalog lists eight capillaries. Bore sizes, usable ranges, individual calibration constants and accompanying certificates must be confirmed for the supplied set; the number alone is not a complete measuring-range specification.

Can the SYD-265B be specified for tests at 40 °C and 100 °C?

The listed bath range extends from room temperature to 100 °C. Temperature-range coverage alone does not establish compliance with a particular test standard. Confirm the required bath stability, uniformity, capillary and flow-time conditions at both setpoints.

Is the SYD-265B a fully automatic system?

The available specifications do not establish a fully automatic workflow. Request a demonstration or operating sequence covering sample loading, equilibration, flow timing, calculation and cleaning before assigning operator time or throughput.

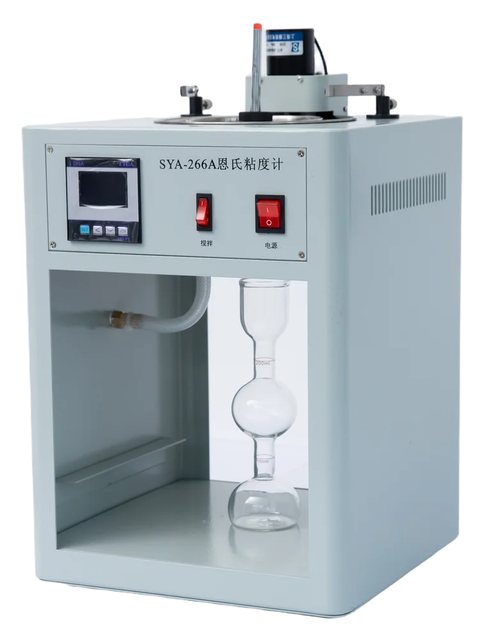

What does the SYA-266A water reference time mean?

The catalog lists 51 ±1 seconds for the water reference at 20 °C. It is a reference condition for the Engler apparatus, not the flow time of every test sample. Follow the supplied method for the reference and sample measurements.

Does the SYA-266A 200 mL figure specify the sample charge?

The reviewed value is the sample outflow volume. Confirm the filling mark, sample conditioning and collection procedure from the instrument instructions rather than treating the timed outflow volume as the initial charge.

Can SYA-266A directly replace a capillary kinematic viscometer?

Select according to the required measurement method and reporting unit. Engler relative efflux time and capillary kinematic viscosity are different procedures; establish any permitted correlation for the sample before substitution.

Which temperature conditions should be confirmed for SYA-266A?

The listed control range is room temperature +5 °C to 100 °C. Confirm the room conditions, target test temperature, bath medium and equilibration procedure; the lower limit is relative to ambient temperature.

Will my sample vessel fit the CH-0510 Horizontal?

The catalog lists a 18 × 12 cm opening and a 20 cm bath depth. Compare those dimensions with the complete vessel, holder and immersion requirement, allowing for the actual usable working space.

Can the CH-0510 Horizontal circulate fluid through a viscometer cup?

Internal and external circulation are listed. Confirm connection sizes, fluid compatibility, operating temperature and the pressure/flow requirement of the cup. Do not assume every circulating accessory can be connected without additional parts.

Is the CH-0510 Horizontal 0.01 °C resolution its temperature accuracy?

No. Display resolution is a separate specification. Request the defined temperature-control accuracy, stability and uniformity under the required operating conditions instead of treating the display increment as all three performance measures.

What should I specify when ordering the CH-0510 Horizontal?

Provide the target temperature, sample vessel or external accessory, fluid, circulation connections, available bench space and destination power supply. Ask which hoses, fittings and operating media are supplied with the bath.

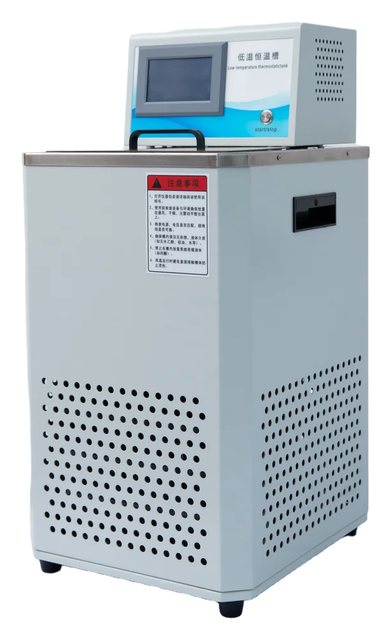

Will my sample vessel fit the CH-0510 Vertical?

The catalog lists a 23.5 × 12 cm opening and a 16 cm bath depth. Compare those dimensions with the complete vessel, holder and immersion requirement, allowing for the actual usable working space.

Can the CH-0510 Vertical circulate fluid through a viscometer cup?

Internal and external circulation are listed. Confirm connection sizes, fluid compatibility, operating temperature and the pressure/flow requirement of the cup. Do not assume every circulating accessory can be connected without additional parts.

Is the CH-0510 Vertical 0.01 °C resolution its temperature accuracy?

No. Display resolution is a separate specification. Request the defined temperature-control accuracy, stability and uniformity under the required operating conditions instead of treating the display increment as all three performance measures.

What should I specify when ordering the CH-0510 Vertical?

Provide the target temperature, sample vessel or external accessory, fluid, circulation connections, available bench space and destination power supply. Ask which hoses, fittings and operating media are supplied with the bath.
